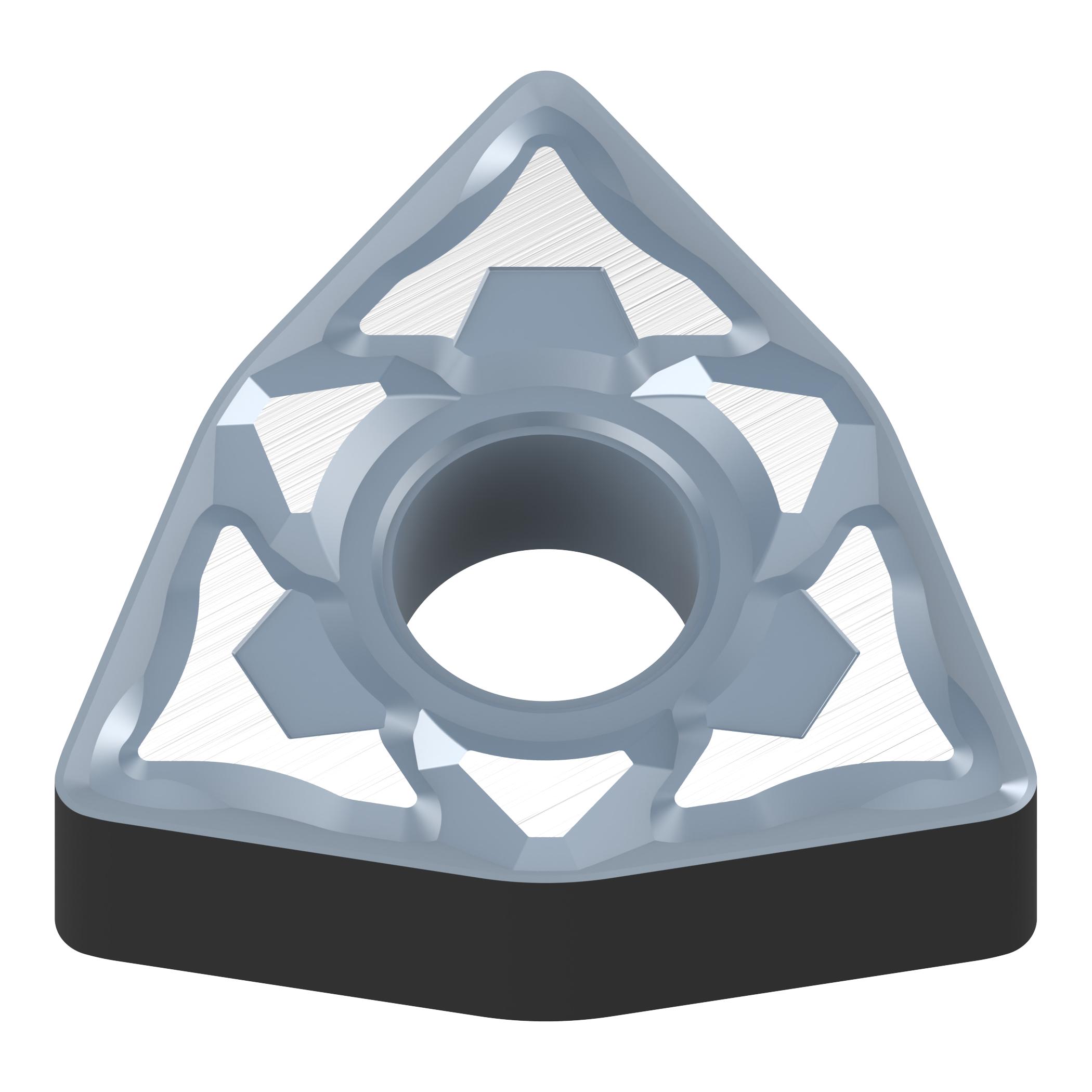

WNMG433SW NX3035 WNMG080412-SW NX3035

WNMG433SW NX3035 WNMG080412-SW NX3035

MIT462053 462053
11.26 / EA
http://schema.org/OutOfStock
  • Chipbreaker: SW
  • Corner Radius: 1.2 mm
  • Cutting Direction: Neutral
  • Hole Diameter: 0.203 in
  • Included Angle: 80 deg
  • Inscribed Circle: 12.7 mm
  • Insert Style: WNMG
  • ISO Code: WNMG080412-SW NX3035
  • Material: Cermet
  • Rake: Negative
  • Relief Angle: 0 deg
  • Shape: Trigon
  • Thickness: 4.76 mm
  • Type: Wiper
  • ANSI Code: WNMG433SW NX3035
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 8.69 mm
  • Manufacturer Name: Mitsubishi Materials USA Corp
  • Manufacturer's Grade: NX3035
QTY
  • Application
For Light Cutting
