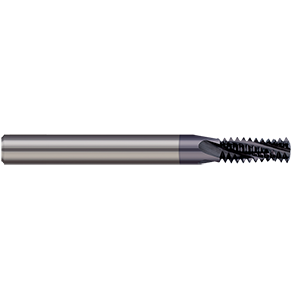

THREAD MILL (METRIC) - HELICAL FLUTE
THREAD MILL (METRIC) - HELICAL FLUTE
MICTTMM-180150X
TMM-180150X
324.13
/ EA
http://schema.org/OutOfStock
/Product/MICTTMM-180150X
- Cutter Diameter Decimal Inch: 0.47
- Cutter Diameter Metric: 11.94
- Length of Cut Decimal Inch: 1.26
- Length of Cut Metric: 32
- Material: Solid Carbide
- Number of Flutes: 4
- Shank Diameter Decimal Inch: 0.472
- Shank Diameter Metric: 12
- Surface Treatment: AlTiN
- Thread Size: M18.0x1.5
- Thread Type: Metric
- Type: Multi-Form
- Shank Type: Cylindrical
- Country of Origin: US
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Micro 100
- Overall Length Decimal Inch: 100
- Overall Length Metric: 2540
- Item Features
- Mills internal and external 60 deg UN threads
- Able to cut larger threads of the same pitch
- 100% thread form creates superior threads vs. tapping
- Mills right hand threads
- Helical flutes
- AlTiN coating option for added lubricity and increased wear resistance in difficult-to-machine materials
- Solid carbide
