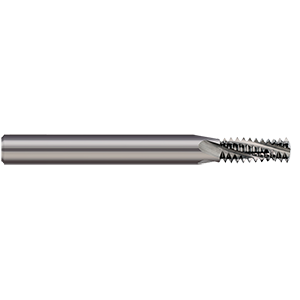

THREAD MILL - HELICAL FLUTE UN
THREAD MILL - HELICAL FLUTE UN
MICTTM-250-28
TM-250-28
169.94
/ EA
http://schema.org/OutOfStock
/Product/MICTTM-250-28
- Cutter Diameter Inch: 0.18in
- Length of Cut: 0.5 in
- Material: Solid Carbide
- Number of Flutes: 3
- Shank Diameter: 0.25 in
- Surface Treatment: Uncoated
- Thread Size: 1/4-28
- Thread Type: UN
- Type: Multi-Form
- Shank Type: Cylindrical
- Country of Origin: US
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Micro 100
- Overall Length: 2.5 in
- Item Features
- Cuts internal and external 60 deg UN threads
- Able to cut larger threads of the same pitch
- 100% thread form creates superior threads vs. tapping
- Mills right and left hand threads
- Helical flutes
- AlTiN coating option for added lubricity and increased wear resistance in difficult-to-machine materials
- Solid carbide
