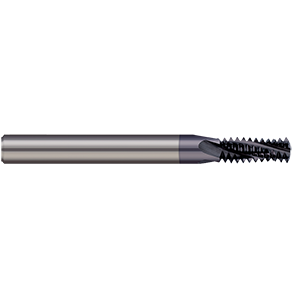

THREAD MILL - HELICAL FLUTE NPTF COATED
THREAD MILL - HELICAL FLUTE NPTF COATED
MICTTM-18NPTFX
TM-18NPTFX
257.49
/ EA
http://schema.org/OutOfStock
/Product/MICTTM-18NPTFX
- Cutter Diameter Decimal Inch: 0.305
- Cutter Diameter Metric: 7.747
- Length of Cut Decimal Inch: 0.625
- Length of Cut Fractional Inch: 5/8
- Length of Cut Metric: 15.875
- Material: Solid Carbide
- Number of Flutes: 4
- Shank Diameter Decimal Inch: 0.312
- Shank Diameter Fractional Inch: 5/16
- Surface Treatment: AlTiN
- Thread Size: 1/4, 3/8-18 NPTF
- Thread Type: NPTF
- Type: Multi-Form
- Shank Type: Cylindrical
- Country of Origin: US
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Micro 100
- Overall Length Decimal Inch: 3
- Overall Length Fractional Inch: 3
- Overall Length Metric: 76.2
- Item Features
- Mills internal and external 60 deg NPTF threads
- 100% thread form creates superior threads vs. tapping
- Mills right hand and left hand threads
- Helical flutes
- AlTiN coating option for added lubricity and increased wear resistance in difficult-to-machine materials
- Solid carbide
