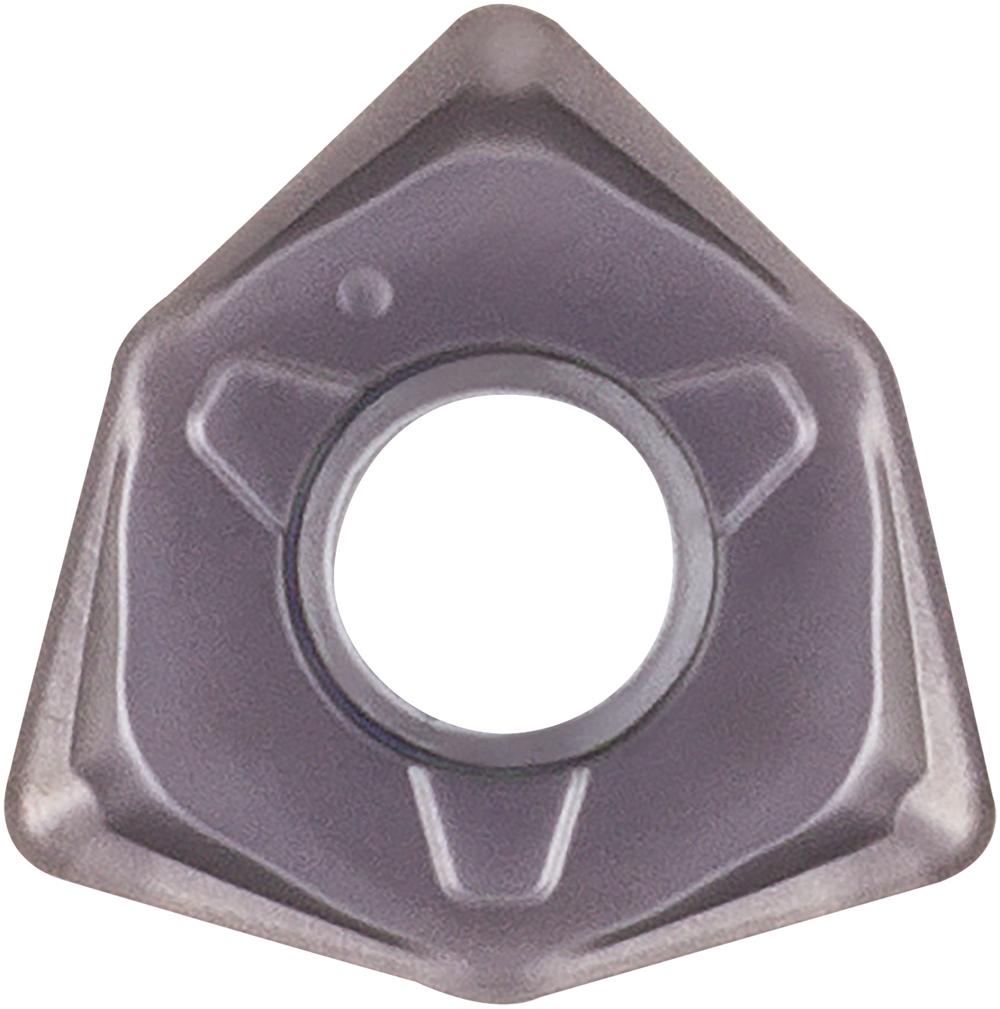

WNMU 050408ENGH PR1810 PVD CARB INSERT

WNMU 050408ENGH PR1810 PVD CARB INSERT

KYOCTLS00108 TLS00108
14.73 / EA
http://schema.org/OutOfStock
WNMU 050408ENGH PR1810 PVD CARB INSERT
  • Chipbreaker: EN-GH
  • Corner Radius: 1/32 in
  • Hand of Insert: Neutral
  • Hole Diameter: 0.133 in
  • Inscribed Circle: 0.346 in
  • Insert Size: 50408
  • Insert Style: WNMU
  • Material: Carbide
  • Rake: Negative
  • Shape: Trigon
  • Surface Treatment: PVD
  • Thickness: 0.165 in
  • Type: 6-Cutting Edge
  • ANSI Code: WNMU050408ENGHPR1810
  • Applicable Materials: Gray Cast Iron/Nodular Cast Iron
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: WNMU050408EN-GH
  • Lead Angle: 80 deg
  • Manufacturer Grade: PR1810
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: K
  • Series: MFWN
QTY
Add to List
  • Application
  • Item Features
  • Standards
For Facing, Shouldering, Slotting
  • MFWN Milling Insert for Facing, Shouldering, Slotting
  • Honed Edge/Tough Edge (Heavy Milling) with 6 Cutting Edges
  • Multi-layer structure with two unique nano layers for superior abrasion resistance and fracture resistance
ANSI
