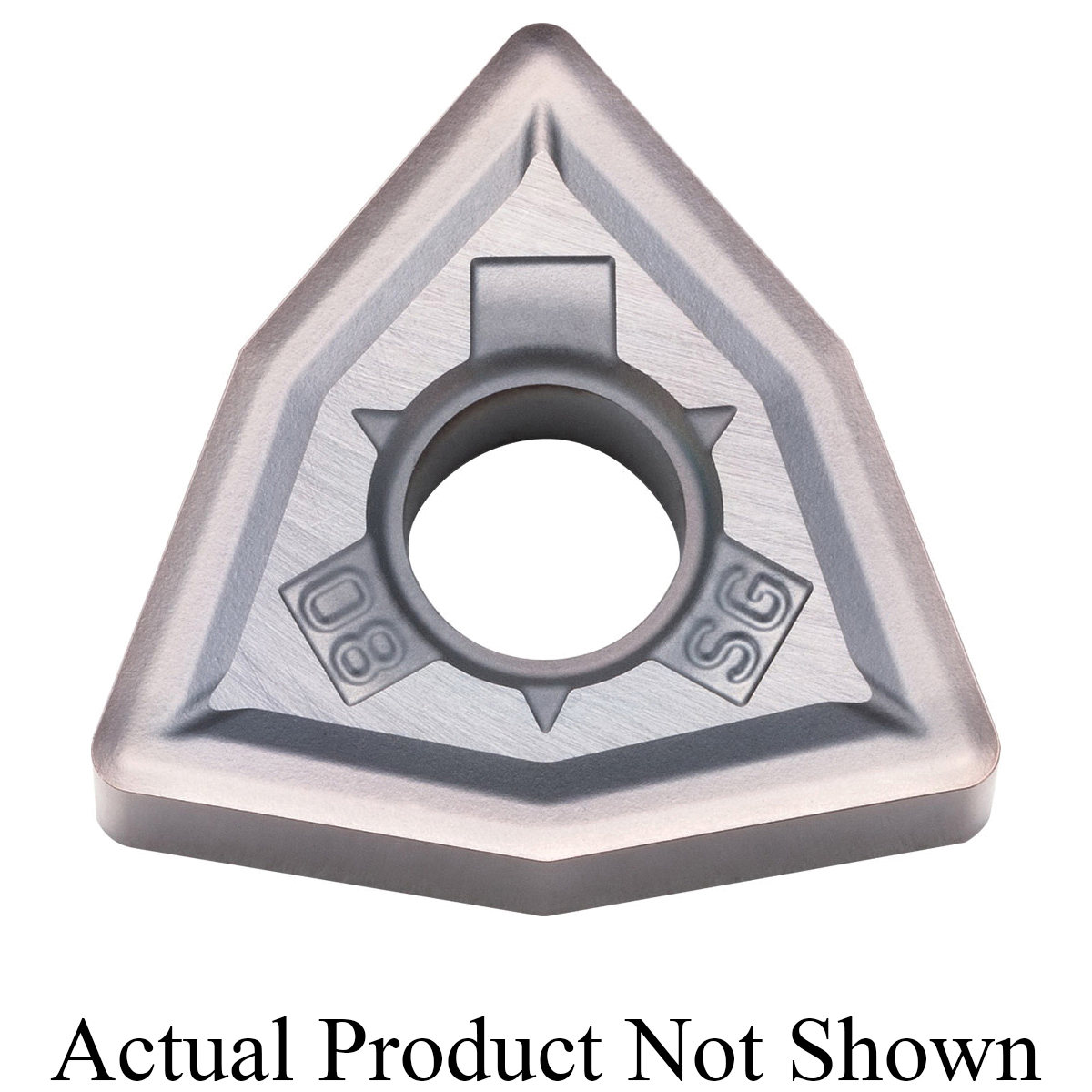

WNMG433SGPR005S TURNING INSERT
WNMG433SGPR005S TURNING INSERT
KYOCTLH58656
TLH58656
9.89
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLH58656
- Applicable Materials: Heat-Resistant Alloy
- Chipbreaker: SG
- Corner Radius: 3/64in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: #433
- Insert Style: WNMG
- ISO Code: WNMG080412SG
- Material: Carbide
- Material Grade: S
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 8
- Shape: Trigon
- Surface Treatment: PVD-MEGACOAT HARD
- Thickness: 3/16in
- Type: 6-Cutting Edge
- Manufacturer Grade: PR005S
- ANSI Code: WNMG433SGPR005S
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Boring and Internal Facing Applications
- Heat-resistant alloy with 6 cutting edges
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
- Hard, wear-resistant grade for high speed machining of continuous to light interrupted heat-resistant alloys
ECCN: EAR99
