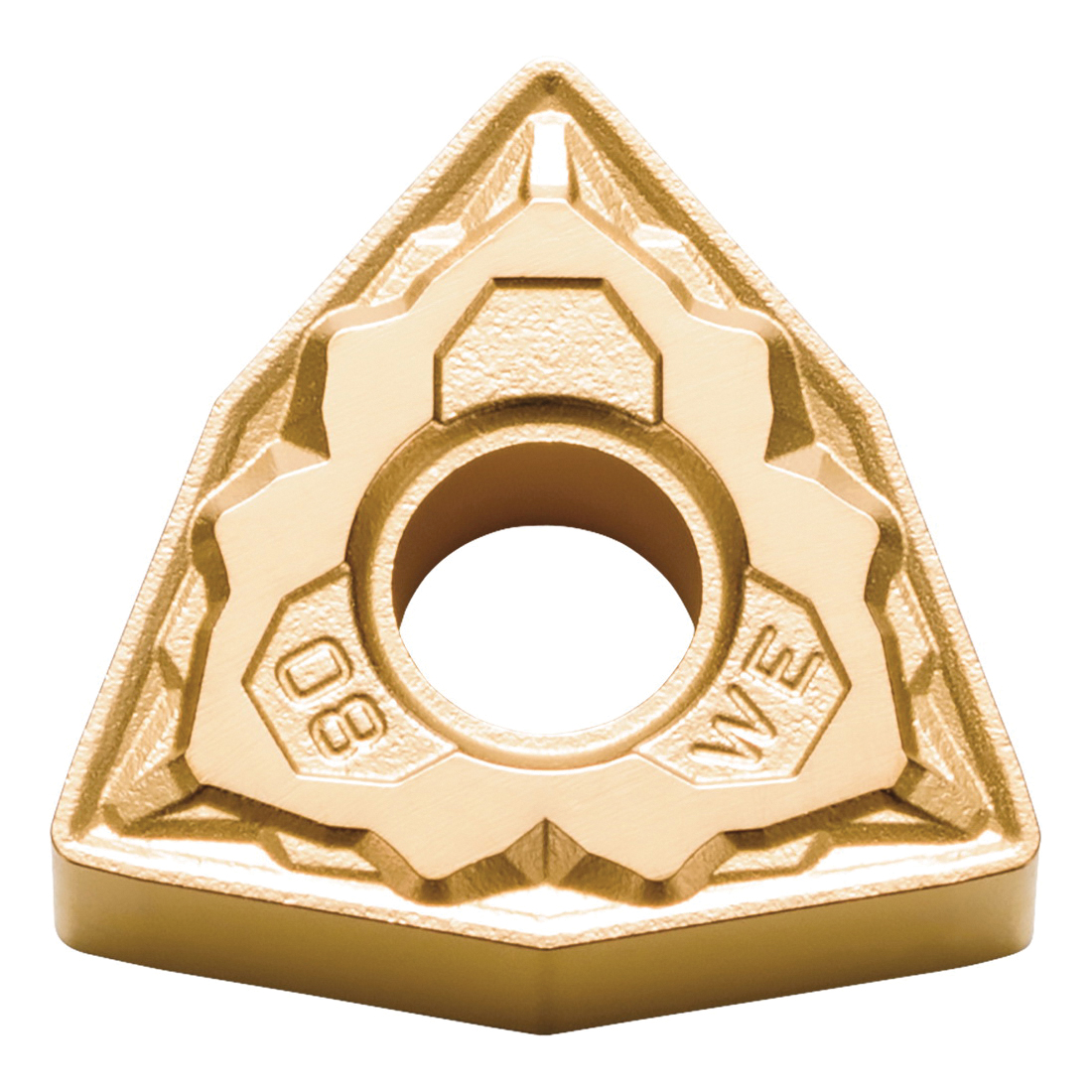

WNMG433WEPV710 TURNING INSERT
WNMG433WEPV710 TURNING INSERT
KYOCTLF09112
TLF09112
9.20
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLF09112
- Applicable Materials: Stainless Steel and Steel
- Chipbreaker: WE
- Corner Radius: 3/64in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 433
- Insert Style: WNMG
- ISO Code: WNMG080412WEPV710
- Material: Cermet
- Material Grade: M, P
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 08, 8
- Shape: Trigon
- Surface Treatment: TiCN/MEGACOAT NANO
- Thickness: 3/16in
- Type: 2-Sided Wiper Edge
- Manufacturer Grade: PV710
- ANSI Code: WNMG433WEPV710
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Medium Finishing and General Turning
- WE chipbreaker - wide application range is available with improved chip control at low depths of cut preventing chip crunching and running over chipbreaker dots at high feed rates
- PV710 grade MEGACOAT nano efficient machining with high quality surface finishes and superior wear and adhesion resistance
- Recommended cermet for long tool life and stable machining for high speed continuous cuts
