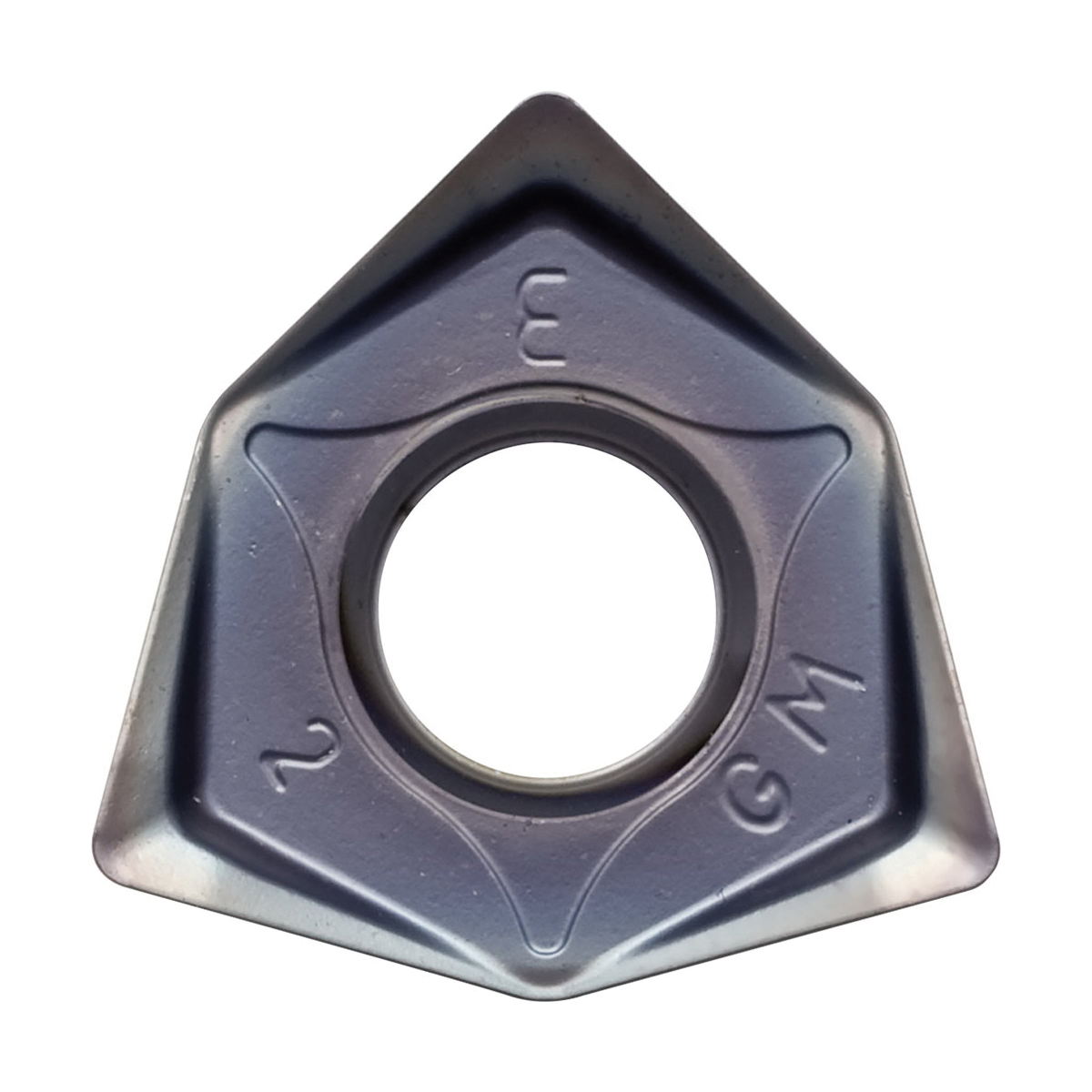

WNMU080604ENGMPR1535 MILLING INSERT

WNMU080604ENGMPR1535 MILLING INSERT

KYOCTLC09305 TLC09305
17.37 / EA
http://schema.org/OutOfStock
WNMU080604ENGMPR1535 MILLING INSERT
  • Chipbreaker: EN-GM
  • Corner Radius: 1/64in
  • Hand of Insert: Neutral
  • Hole Diameter: 0.2441in
  • Inscribed Circle: 0.552in
  • Insert Size: #080604
  • Insert Style: WNMU
  • Material: Carbide
  • Rake: Positive
  • Shape: Trigon
  • Surface Treatment: PVD-MEGACOAT NANO
  • Thickness: 0.2618in
  • Type: 6-Cutting Edge
  • Manufacturer Grade: PR1535
  • ISO Code: WNMU080604EN-GM
  • ANSI Code: WNMU080604ENGMPR1535
  • Material Grade: M, P, S
  • Applicable Materials: Precipitation Hardened Stainless Steel, Free-Cutting Steel, Carbon/Alloy Steel, Mold Steel, Austenitic Stainless Steel, Martensitic Stainless Steel and Heat-Resistant Alloy
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Lead Angle: 80°
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: M-SIX (MFWN)
QTY
Add to List
  • Application
  • Item Features
  • Standards
For PVD for titanium alloy and precipitation hardened stainless steel, facing, shouldering and slotting
  • Honed edge with 6 cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • MEGACOAT NANO coated insert grade for long tool life
  • Prevents wear and fracturing with high hardness (35 GPa) and superior oxidation resistance (oxidation temperature 1150 deg C)
ECCN: EAR99
