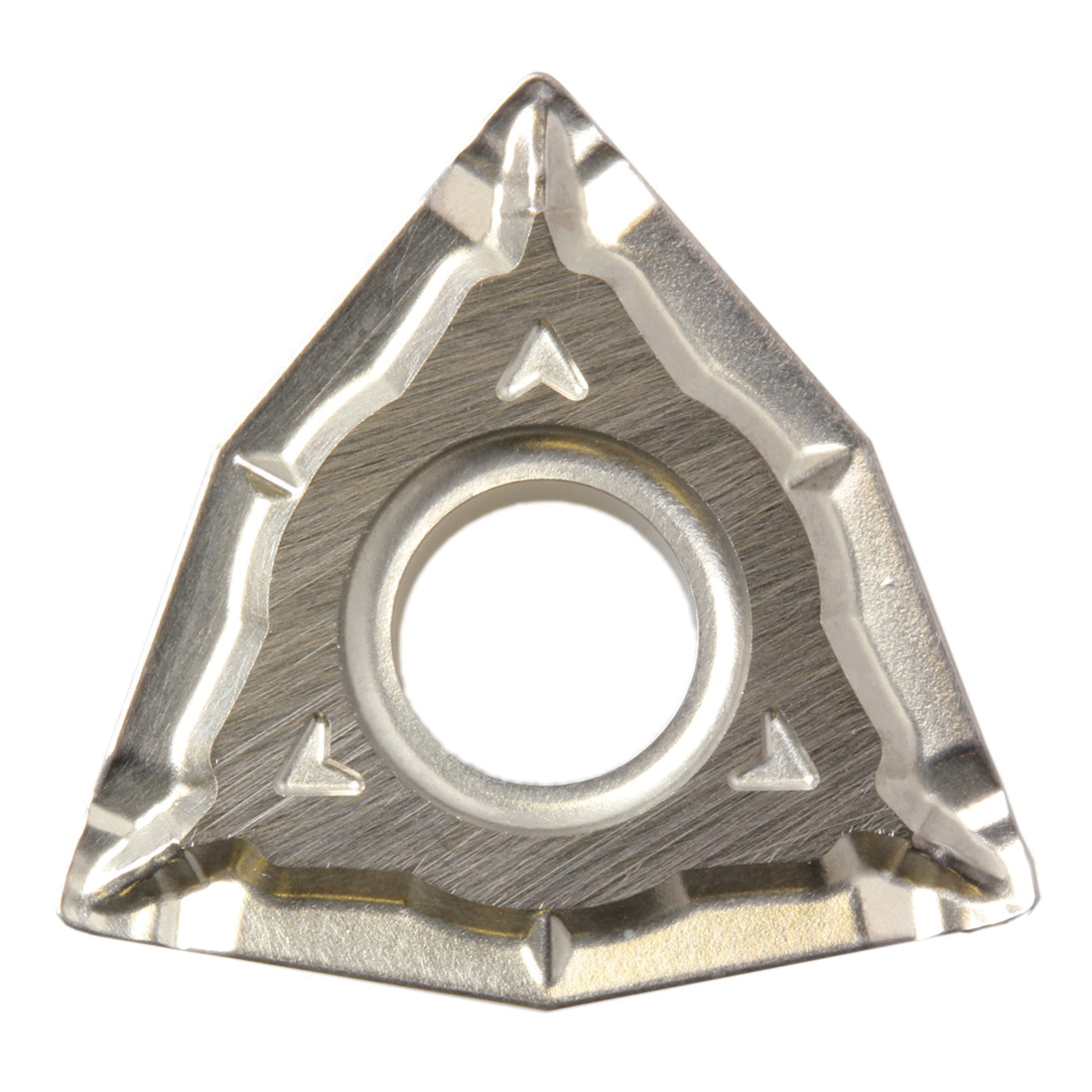

WNMG433WQCA530 TURNING INSERT
WNMG433WQCA530 TURNING INSERT
KYOCTAD08542
TAD08542
9.31
/ EA
http://schema.org/OutOfStock
/Product/KYOCTAD08542
- Insert Style: WNMG
- Insert Size: 433
- Corner Radius: 3/64in
- Manufacturer Grade: CA530
- Chipbreaker: WQ
- ISO Code: WNMG080412WQ CA530
- ANSI Code: WNMG433WQ CA530
- Included Angle: 80°
- Shape: Trigon
- Material Grade: P
- Seat Size: 8
- Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
- Inscribed Circle: 1/2in
- Applicable Materials: Steel
- Country of Origin: JP
- Hand Direction: Neutral
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 0.203in
- Manufacturer Name: KYOCERA Precision Tools
- Material: Carbide
- Rake: Negative
- Relief Angle: 0°
- Thickness: 3/16in
- Type: 2-Sided Wiper Edge
- Application
- Item Features
Medium Finishing and General Turning
- Longer tool life - excellent wear and fracture resistance
- Prevents layer peeling - strong intra coating adhesion
- Higher adhesion between each layer with improved crystal structure
- Control chipping - higher layer strength and fracture resistance
- CA530 grade special tough substrate and tough coating film provides high stability and wear resistance
- General to heavy interrupted machining (stability oriented)
- WQ chipbreaker - wiper insert
