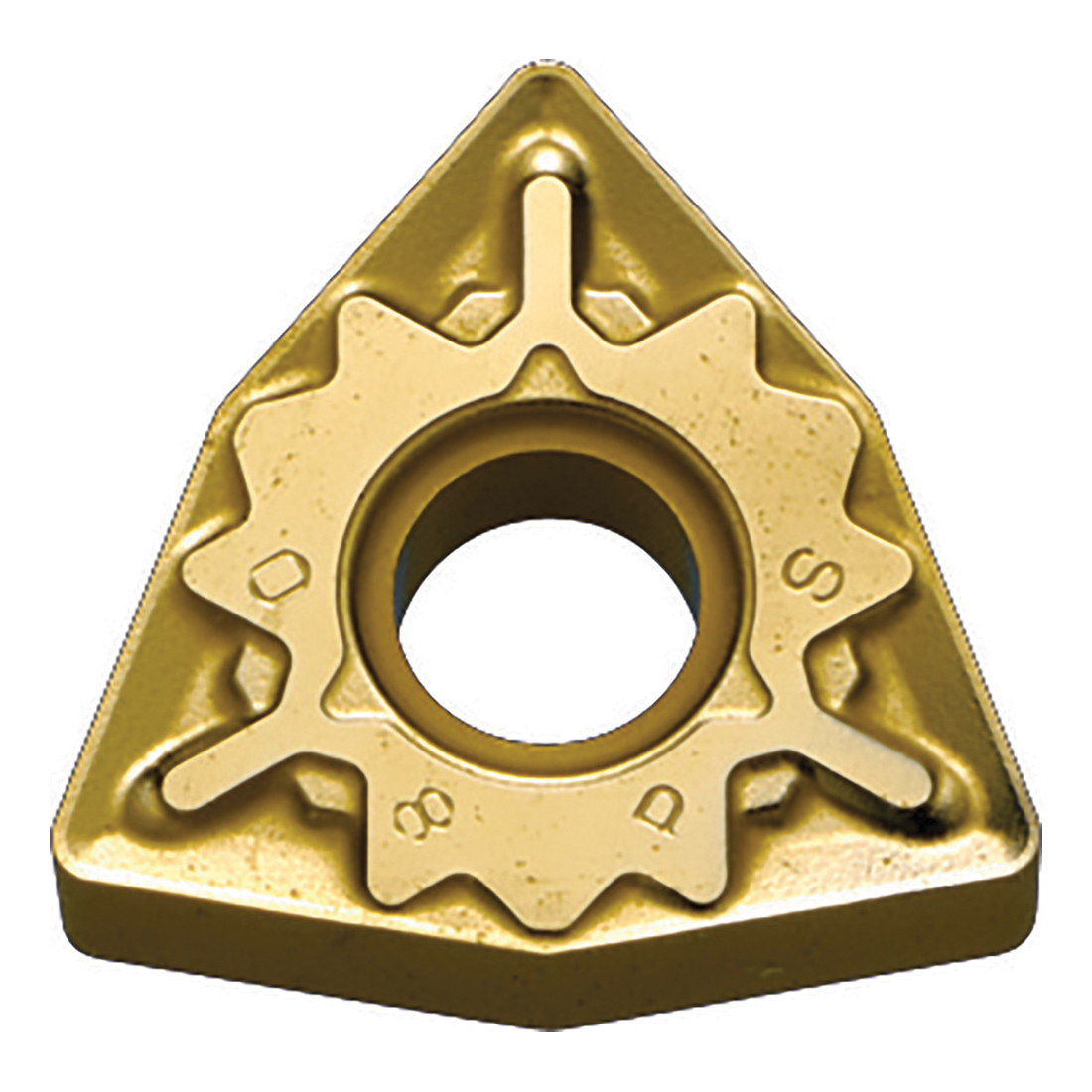

WNMG434PSCA525 TURNING INSERT
WNMG434PSCA525 TURNING INSERT
KYOCTAC08553
TAC08553
9.31
/ EA
http://schema.org/OutOfStock
/Product/KYOCTAC08553
- Applicable Materials: Steel
- Chipbreaker: PS
- Corner Radius: 1/16in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 434
- Insert Style: WNMG
- ISO Code: WNMG080416PS CA525
- Material: Carbide
- Material Grade: P
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 08, 8
- Shape: Trigon
- Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
- Thickness: 3/16in
- Type: 2-Sided
- Manufacturer Grade: CA525
- ANSI Code: WNMG434PS CA525
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Medium Roughing and General Turning
- Longer tool life - excellent wear and fracture resistance
- Prevents layer peeling - strong intra coating adhesion
- Higher adhesion between each layer with improved crystal structure
- Control chipping - higher layer strength and fracture resistance
- CA525 grade special substrate and tough coating film provides high wear and fracture resistance
- First choice for steel machining
- PS chipbreaker - general purpose chipbreaker
- More stable due to large contact surface
