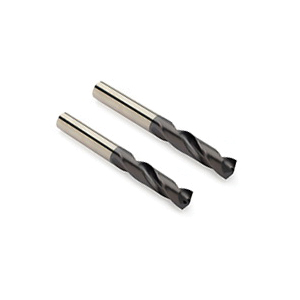

N15 R457 SCFORCEXSHORT DRILL TIALN (OLD
N15 R457 SCFORCEXSHORT DRILL TIALN (OLD
DOR5979286
5979286
116.64
/ EA
http://schema.org/OutOfStock
/Product/DOR5979286
- Cutting Depth: 3XD
- Drill Size Metric: 4.569, 4.572
- Drill Size Number: #15
- Flute Length Decimal Inch: 0.945
- Flute Length Metric: 24
- Flute Type: Spiral
- Hand Direction: Right Hand
- Included Angle: 140°
- Material: Carbide
- Overall Length Decimal Inch: 66
- Overall Length Metric: 1676.4
- Point Type: 4-Facet/Self-Centering/Split
- Series: FORCE X R457
- Shank Size: 6mm Dia x 36mm L
- Shank Type: Reinforced
- Surface Treatment: TiAlN Coated
- System of Measurement: Imperial
- Type: High Performance Standard
- Drill Size Decimal Inch: 0.1799, 0.18
- Has Attributes: Yes
- Has Image: Yes
Coolant through clears chips away from the cutting edge. Self-centering 4-facet split point for enhanced penetration rates. TiAlN coating increases surface hardness and improves tool life at high rpm.
- Application
- Item Features
- Standards
General Drilling Applications
- These drills are problem solvers, providing high productivity and consistent performance and repeatability in multi-applications across diverse machines and conditions, this makes them the ideal choice for general engineering and sub-contract environments
- Modified 4-facet split point improves chip formation, strength and wear‐resistance
- Consistent edge preparation provides predictable wear and operator confidence
- The family offers ranges of TiAlN coated drills in a variety of lengths, in solid and coolant feed variants
- CTW flute construction - continuously thinned web technology provides a very strong web design whilst at the same time reducing thrust forces during drilling
DIN 6537 K|DIN 6535 HA|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
