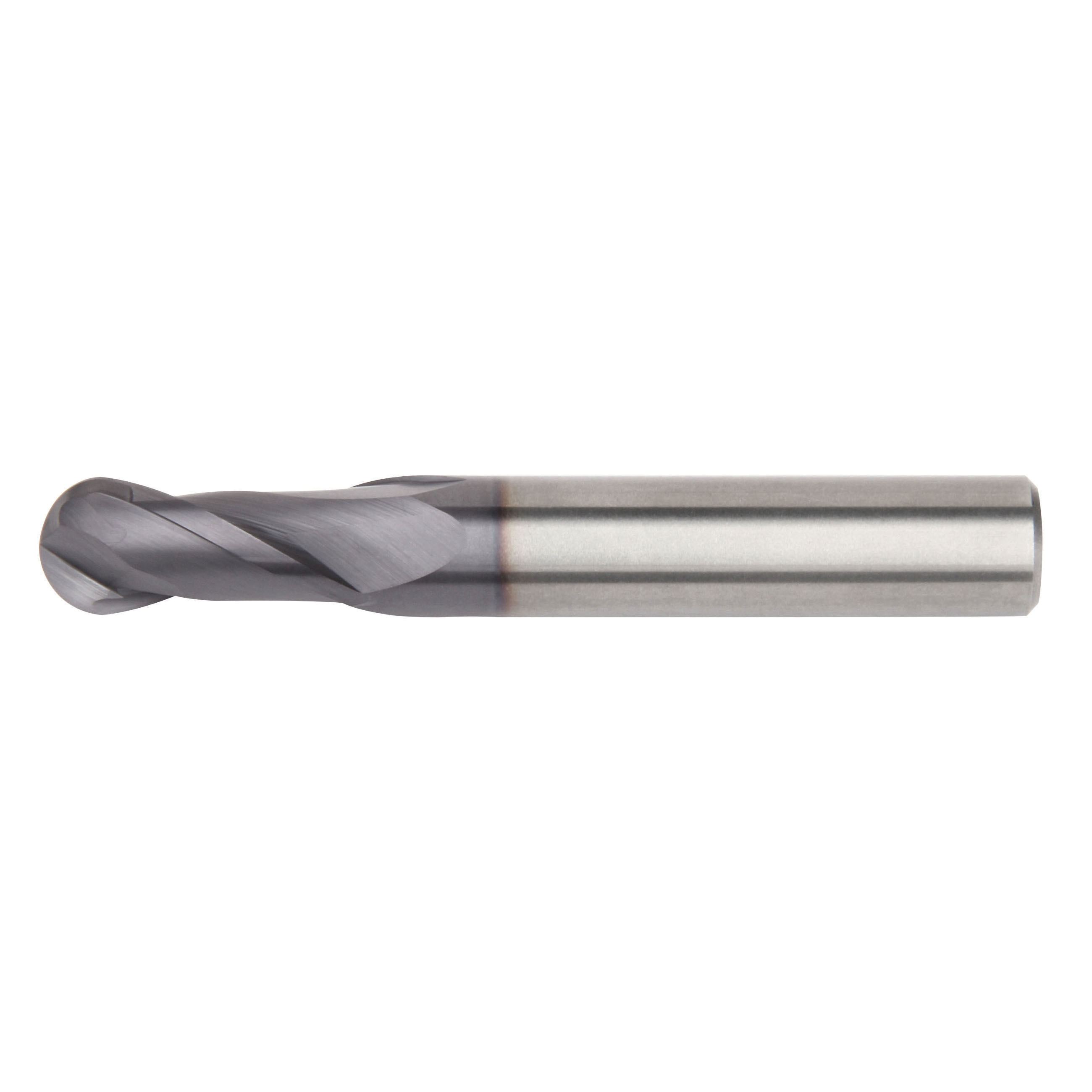

GP SC END MILL BN 2FL 14x14x22x83
GP SC END MILL BN 2FL 14x14x22x83
WIDA5880383
5880383
160.82
/ EA
http://schema.org/OutOfStock
/Product/WIDA5880383
- Cutter Diameter Decimal Inch: 0.551
- Cutter Diameter Metric: 14
- Type: Ball Nose Center Cutting General Purpose
- Number of Flutes: 2
- Length of Cut Decimal Inch: 0.866
- Length of Cut Metric: 21.996
- Overall Length Decimal Inch: 83
- Overall Length Metric: 2108.2
- Material: Solid Carbide
- Surface Treatment: TiAlN Coated
- Helix Angle: 30°
- Shank Diameter Decimal Inch: 0.551
- Shank Diameter Metric: 14
- Shank Type: Straight
- Series: VariMill™ GP D011
- Country of Origin: IN
- Hand Direction: Right Hand
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: WIDIA
- Application
- Item Features
- Standards
3D Profiling, Slotting, Roughing, Finishing, Side Milling and Shoulder Milling
- Increased manufacturing flexibility and reduced tool cost
- Less tool changes and high metal removal rates (MRR)
- Eccentric relief for improved edge stability and high tool life
- Easy and cost efficient regrinding due to eccentric relief
- Applicable on steel, stainless steel and cast iron
- Two flutes for high flexibility in unstable conditions
DIN 6527
