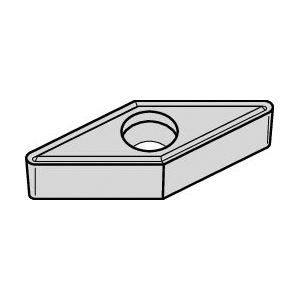

GPCD SCREW ON INSERT CG5
WIDA2827615
MFG #: 2827615
$18.59
/ EA
- Insert Style: GPHW
- Insert Size: 1211
- Corner Radius: 0.015 in
- ISO Code: GPHW050104 CG5
- ANSI Code: GPHW1211 CG5
- Included Angle: 45 deg
- Shape: Rhombic
- Inscribed Circle: 5/32 in
- Country of Origin: US
- Cutting Direction: Neutral
- For Use On: Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals and High Temperature Alloys
- Hole Diameter: 0.084 in
- Length: 0.221 in
- Manufacturer Name: WIDIA
- Manufacturer's Grade: CG5
- Material: Carbide
- Rake: Positive
- Relief Angle: 11 deg
- Thickness: 0.062 in
- Application
- Standards
Small Hole Boring Applications
ECCN: EAR99|PROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. www.P65Warnings.ca.gov
