KENNAMETAL - WIDIA

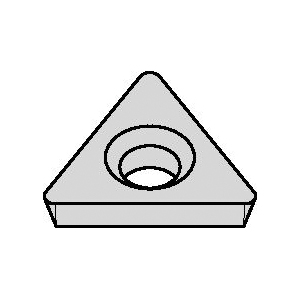

TD6P SCREW ON INSERT CG6

WIDA2821778 MFG #: 2821778
$14.93 / EA
  • Insert Style: TPHB
  • Insert Size: 321
  • Corner Radius: 0.015 in
  • ISO Code: TPHB160304 CG6
  • ANSI Code: TPHB321 CG6
  • Included Angle: 60 deg
  • Shape: Triangular
  • Inscribed Circle: 3/8 in
  • Country of Origin: US
  • Cutting Direction: Neutral
  • For Use On: Steel, Stainless Steel and Cast Iron
  • Hole Diameter: 0.13 in
  • Length: 0.6496 in
  • Manufacturer Name: WIDIA
  • Manufacturer's Grade: CG6
  • Material: Carbide
  • Rake: Positive
  • Relief Angle: 11 deg
  • Thickness: 1/8 in
QTY
  • Application
  • Standards
Small Hole Boring Applications
