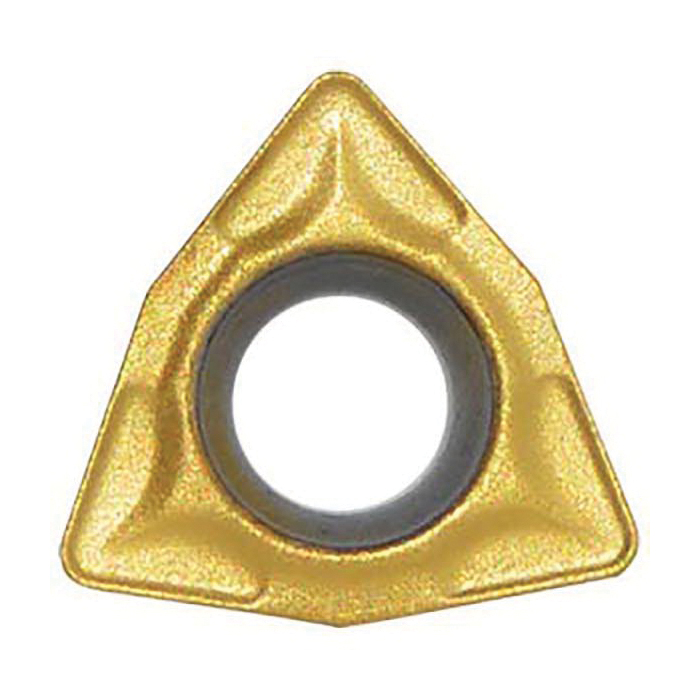

WCMT 1.210.5-ZX3 UD51 INSERT

WCMT 1.210.5-ZX3 UD51 INSERT

ULDXWCMT1.2110.5ZX3UD51 WCMT 1.210.5-ZX3 UD51
11.69 / EA
http://schema.org/OutOfStock
WCMT 1.210.5-ZX3 UD51 INSERT
  • ANSI Code: WCMT 1.210.5-ZX3 UD51
  • Chipbreaker: ZX3
  • Corner Radius: 0.008 in
  • Country of Origin: US
  • For Use On: Stainless Steel, Steel, Cast Iron and Heat-Resistant Steel
  • Has Attributes: Yes
  • Has Image: Yes
  • Included Angle: 80 deg
  • Inscribed Circle: 0.156 in
  • Insert Size: 1.210.5
  • Insert Style: WCMT
  • Manufacturer Name: ARCH Cutting Tools
  • Manufacturer's Grade: UD51
  • Material Grade: K, M, P, S
  • Rake: Positive
  • Relief Angle: 7 deg
  • Shape: Trigon
  • Thickness: 1/16 in
  • Type: Standard
QTY
Add to List
  • Application
  • Item Features
Roughing and Semi-Finishing of Carbon Alloy and Stainless Steel
  • Chipbreaker and ISO countersink one side, with hole
