Techniks brand logo

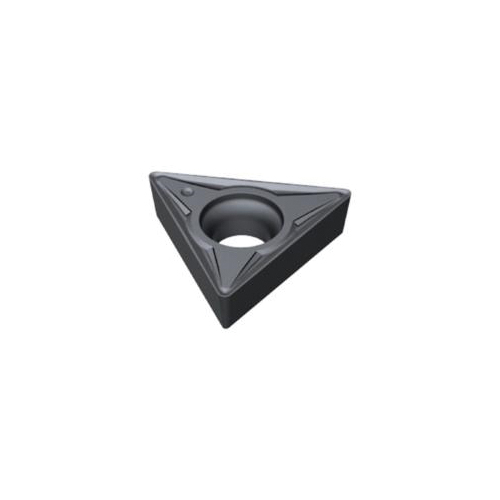

TCMT21.51NN-LT1000-INSERT

TEC3568831 MFG #: 3568831
$12.00 / EA
  • Insert Style: TCMT
  • Insert Size: 21.51
  • Corner Radius: 0.016 in
  • Chipbreaker: NN
  • ANSI Code: TCMT21.51NN-LT1000
  • Included Angle: 60 deg
  • Shape: Triangular
  • Material Grade: H, K, M, P, S
  • Inscribed Circle: 1/4 in
  • Maximum Depth of Cut: 0.069 in
  • Cutting Direction: Neutral
  • For Use On: Cast Iron, Hardened Material, High Temperature Alloys, Stainless Steel and Steel
  • Length: 0.433 in
  • Manufacturer Name: TECHNIKS INDUSTRIES
  • Manufacturer's Grade: LT1000
  • Material: Carbide
  • Rake: Positive
  • Relief Angle: 7 deg
  • Thickness: 0.094 in
  • Type: High Performance
QTY
  • Application
  • Item Features
Boring and Internal Turning
  • LT1000 grade 4X thicker PVD coating for extended tool life
  • Chipbreaker NN for all-purpose
  • Ultra-thick, patented PVD coating dramatically increases tool life
  • Very low flank wear and plastic deformation minimize or eliminate offsets
  • Advanced high-performance grade offers ultimate versatility
  • Exceptional performance in high Temp alloy
