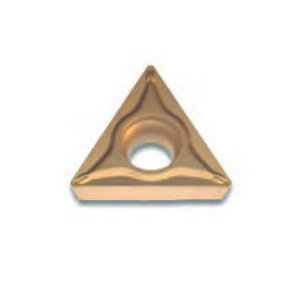

TCMT21.52ESU-AC510U CTD CARB INSERT
TCMT21.52ESU-AC510U CTD CARB INSERT
SUE19HVW9A
19HVW9A
7.26
/ EA
http://schema.org/OutOfStock
/Product/SUE19HVW9A
- Insert Style: TCMT
- Insert Size: 21.52
- Corner Radius: 1/32 in
- Manufacturer Grade: AC510U
- Chipbreaker: ESU
- ISO Code: TCMT110208N-SU-AC510U
- ANSI Code: TCMT21.52ESU-AC510U
- Included Angle: 60 deg
- Shape: Triangular
- Material Grade: K, S
- Seat Size: 11
- Surface Treatment: PVD-Super ZX Coated
- Inscribed Circle: 1/4 in
- Applicable Materials: Cast Iron and Exotic Alloys
- Country of Origin: JP
- Hand Direction: Neutral
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 0.11 in
- Manufacturer Name: Sumitomo Electric Industries
- Material: Carbide
- Rake: Positive
- Relief Angle: 7 deg
- Thickness: 0.094 in
- Application
- Item Features
Light Cutting Applications
- AC510U grade general to interrupted machining of cast iron and ductile cast iron
- Utilizing the new super multi-layered PVD coating of nanometer thick TiAlN and AlCrN layers, coupled with a fine grained super tough substrate for excellent fracture resistance
- Finishing to medium cutting of exotic alloys
- Superior wear and heat resistance and stable, long tool life
