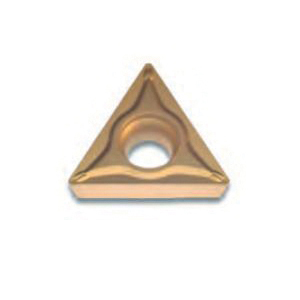

TCMT21.51ESU-AC415K CTD CARB INSERT
TCMT21.51ESU-AC415K CTD CARB INSERT
SUE192RBPR
192RBPR
8.27
/ EA
http://schema.org/OutOfStock
/Product/SUE192RBPR
- ANSI Code: TCMT21.51ESU-AC415K
- Applicable Materials: Cast Iron
- Chipbreaker: ESU
- Corner Radius: 1/64 in
- Country of Origin: JP
- Hand Direction: Neutral
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 0.11 in
- Included Angle: 60 deg
- Inscribed Circle: 1/4 in
- Insert Size: 21.51
- Insert Style: TCMT
- ISO Code: TCMT110204N-SU-AC415K
- Manufacturer Grade: AC415K
- Manufacturer Name: Sumitomo Electric Industries
- Material: Carbide
- Material Grade: K
- Rake: Positive
- Relief Angle: 7 deg
- Seat Size: 11
- Shape: Triangular
- Surface Treatment: CVD-Super FF Coated
- Thickness: 0.094 in
- Application
- Item Features
Light Cutting Applications
- AC415K grade employs a special dedicated ultra hard substrate that is also suitable for interrupted cutting and ultra hard super FF coating to provide stability and long tool life in a wide range of processes
- First recommended grade for cast iron turning
