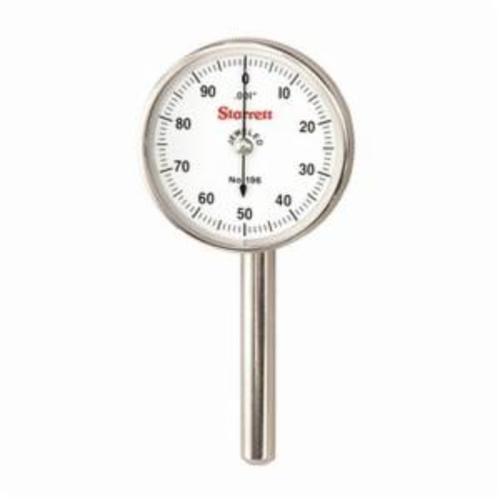

Universal Back-Plunger Dial Test Indicat

STR66865 MFG #: 66865
$250.00 / EA
  • Dial Color: White
  • Material: Stainless Steel
  • Tip Size: 1/4 in
  • Series: 196 Series
  • Type: Back Plunger
  • Measuring Range: 0.2 in
  • Dial Reading: 0 to 100
  • Dial Size: 1-7/16 in
  • Graduations: 0.001 in
Our 196 indicator is one of the most versatile indicators available and it is the granddaddy of them all. Over the years this tool has been improved by methods and materials but the basic design is unchanged. The design is older than most of you and has withstood the test of time and beaten all challengers.
  • Includes
  • Item Features
  • Standards
(3) Contact Points, Adaptor and Redemption Card
  • 1/4 in Dia shank
  • Accurate and reliable
  • Simple to operate
  • Rugged with few moving parts
  • Smooth in operation
  • Universal back plunger dial indicators
  • For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model
  • Then the contact should be brought against the work with enough pressure to give the hand one full turn
  • Set the hand at zero by rotating the dial with the knurled bezel
  • This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation
  • Inexpensive - the best indicator value you can buy
  • Antimagnetic models are also available in inch reading 196A6Z and 196B6
PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
