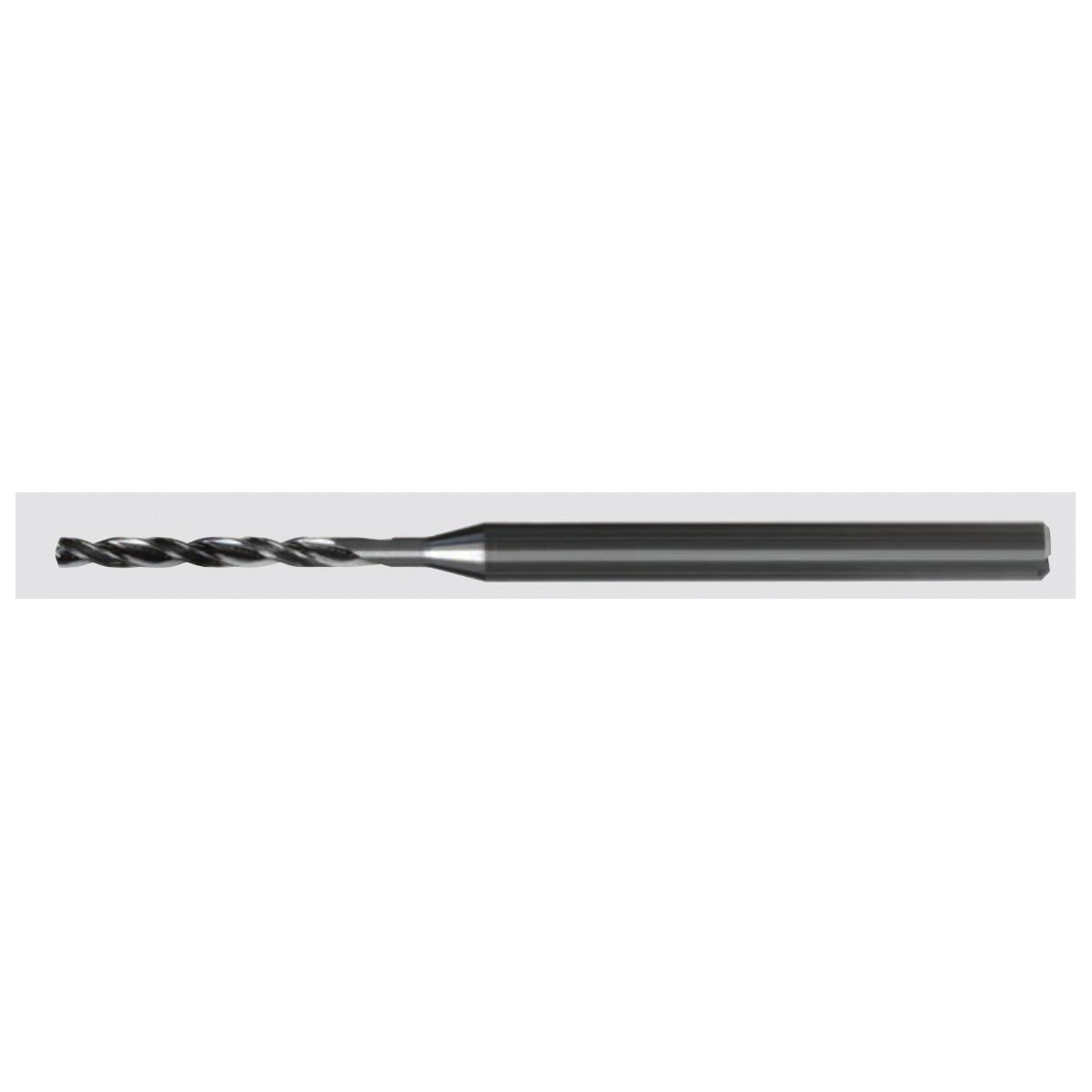

2.6 MM 2FL TCR IC DRILL
2.6 MM 2FL TCR IC DRILL
SGS06047
06047
185.07
/ EA
http://schema.org/OutOfStock
/Product/SGS06047
- Applicable Materials: Steel, Stainless Steel, Cast Iron, High Temperature Alloy, Titanium Alloy, Non-Ferrous, Plastics/Composites and Hardened Steels
- Drill Size Metric: 2.6, 2.601
- Flute Length Decimal Inch: 1.854
- Flute Length Metric: 47.1
- Flute Type: Spiral
- Hand Direction: Right Hand
- Included Angle: 140°
- Material: Submicron Grain Carbide
- Number of Flutes: 2
- Overall Length Decimal Inch: 90
- Overall Length Metric: 2286
- Point Type: Split
- Series: M814
- Shank Size: 4mm Dia
- Shank Type: Common
- Surface Treatment: Ti-NAMITE®-Cr Coated
- System of Measurement: Metric
- Type: Double Margin
- Country of Origin: IN
- Drill Size Decimal Inch: 0.102, 0.1024
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: KYOCERA SGS Precision Tools
- Application
- Item Features
- Standards
Aerospace, Automotive, Casting and Foundries, Medical, Mold and Die, General Engineering and Power Generation Applications
- Split point and double margin design provide superior hole finish and size control
- Coolant hole feature allows straight through drilling without a peck cycle
- High performance Ti-NAMITE®-Cr coating and mirror polished fluting increase tool life and productivity in moderate to difficult workpiece materials
- Available from stock in a selection of popular lengths and diameters
- Application specific sub micron grain carbide designed specifically for micro tool applications
- Manufactured in accordance with KSPT ISO certified quality procedures
PROP65: This product can expose you to chemicals including Cobalt, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
