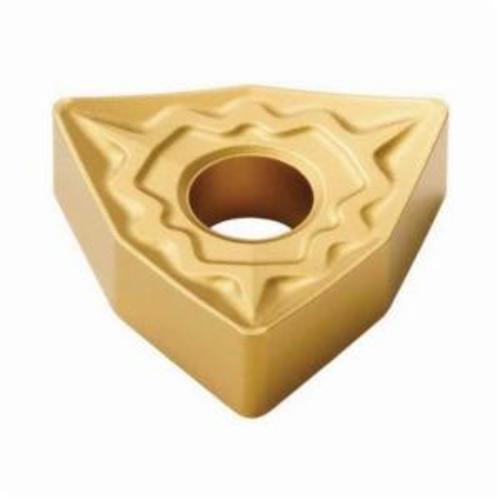

WNMM 433-R6 TP40 INSERT
WNMM 433-R6 TP40 INSERT
SEC74078341
74078341
16.70
/ EA
http://schema.org/OutOfStock
/Product/SEC74078341
- Insert Style: WNMM
- Insert Size: 80412
- Corner Radius: 1.2mm
- Manufacturer Grade: TP40
- Chipbreaker: R6
- ISO Code: WNMM080412-R6 TP40
- ANSI Code: WNMM433-R6 TP40
- Included Angle: 80°
- Shape: Trigon
- Material Grade: M, P
- Seat Size: 8
- Surface Treatment: CVD-TiC/TiCN+TiN Coated
- Inscribed Circle: 12.7mm
- Maximum Depth of Cut: 5mm
- Applicable Materials: Stainless Steel and Steel
- Country of Origin: SE
- Hand Direction: Neutral
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 5.15mm
- Manufacturer Name: Seco Tools
- Material: Carbide
- Rake: Negative
- Relief Angle: 0°
- Thickness: 4.76mm
- Application
Roughing Applications
