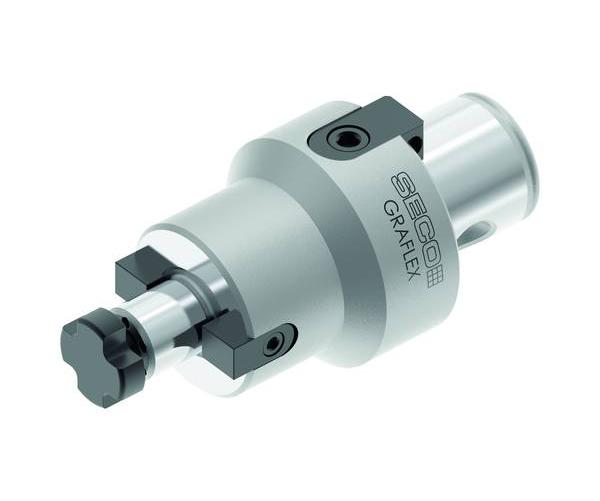

GRAFLEX G5 3/4IN 1.26GL SHELL MILL ARBOR

GRAFLEX G5 3/4IN 1.26GL SHELL MILL ARBOR

SEC14000757 14000757
360.72 / EA
http://schema.org/OutOfStock
GRAFLEX G5 3/4IN 1.26GL SHELL MILL ARBOR
  • Body Diameter Decimal Inch: 1.75
  • Body Diameter Metric: 44.45
  • Body Length: 0.47in
  • Country of Origin: FR
  • Gage length Decimal Inch: 1.26
  • Manufacturer Name: Seco Tools
  • Nose Diameter: 1.75 in, 1.75in
  • Overall Length Decimal Inch: 2.441, 3.129
  • Overall Length Metric: 62.001, 79.477
  • Shank Connection Size: 0.75 in, 0.75in
  • Shank Diameter Decimal Inch: 0.75
  • Shank Diameter Fractional Inch: 3/4
  • Shank Type: Straight Shank
  • System Size Machine Side: G5
  • Type: Milling Holder
  • ANSI Designation: M552528075
  • Connection Machine Side: G5
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Designation: M552528075
  • Old Manufacturer Number: 94785
  • Tool Type: Other
QTY
Add to List
  • Item Features
  • Perfectly balanced during high-speed milling, in difficult materials the low runout achieves identical depth of cut for all inserts
