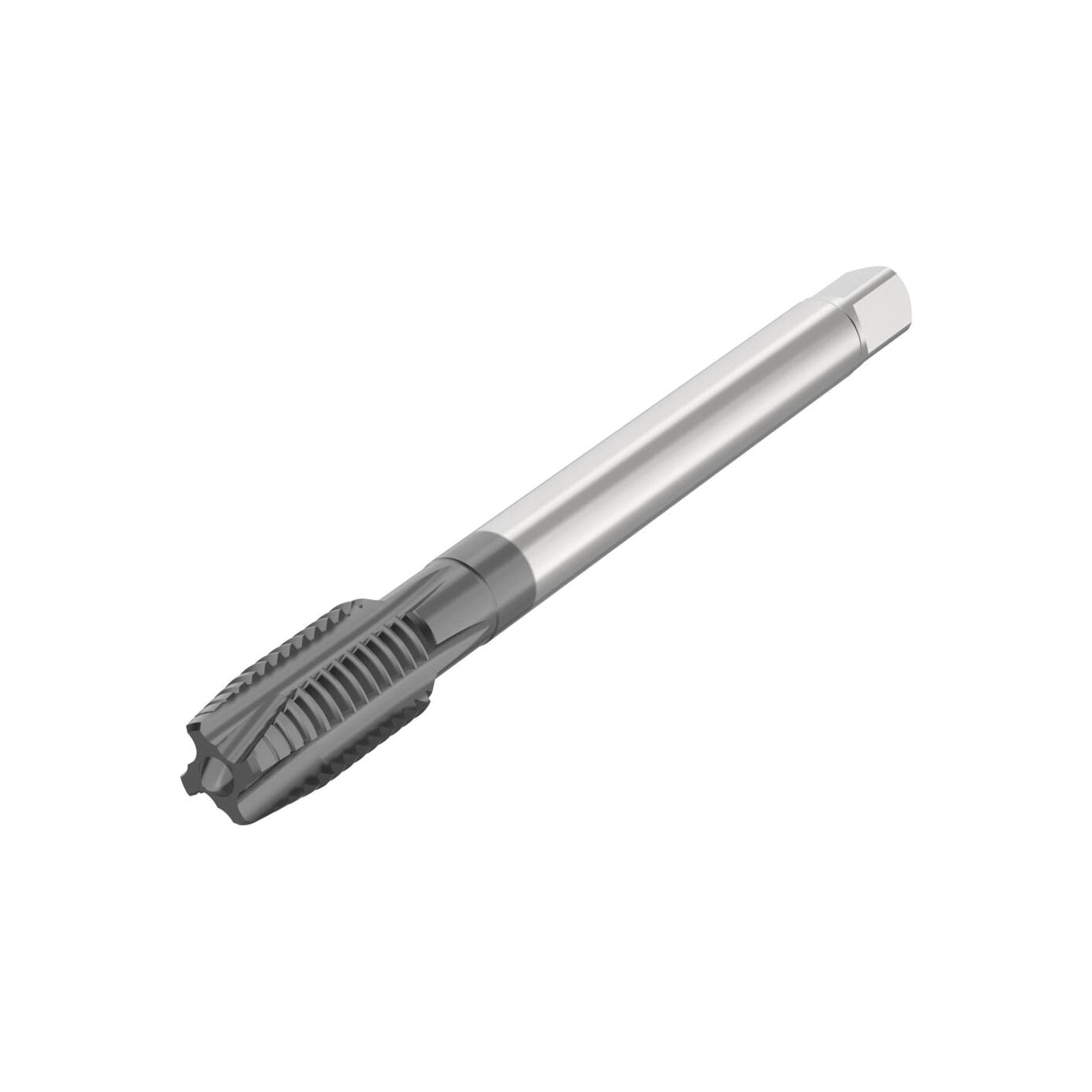

MTP-M16X2.00ISO6HX-TB-S002 THRU HOLE TAP
MTP-M16X2.00ISO6HX-TB-S002 THRU HOLE TAP
SEC10001170
10001170
152.32
/ EA
http://schema.org/OutOfStock
/Product/SEC10001170
- Applicable Materials: Superalloy and Titanium
- Chamfer: Plug
- Class of Fit: 6HX
- Material: HSS-E-PM
- Number of Flutes: 4
- Overall Length Decimal Inch: 110
- Overall Length Metric: 2794
- Shank Diameter Decimal Inch: 0.472
- Shank Diameter Metric: 12
- Surface Treatment: ACN Coated
- Thread Length Decimal Inch: 0.984
- Thread Length Metric: 25
- Thread Limit: 6HX
- Thread Size: M16x2
- Thread Standard: ISO
- Type: Helix Through Hole
- Country of Origin: DE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Seco Tools
- Size: 16.2 mm, 16.2mm
- System of Measurement: Metric
- Through Coolant (Yes/No): No
Seco's range of 280 helix point and 73 straight threading taps for through holes are available for general purpose and material-specific applications. Most come with or without internal coolant in both helix point and straight fluted taps. The tap dimension range for general purpose covers 2 to 36 mm in thread profiles M, MF, UNC, UNF, G, NPT and NPTF. For material-specific (ISO P, M and N) helix point taps, the range is from 1 to 30 mm in thread profiles M and MF. Straight fluted (ISO-K) thread profiles range from 3 to 42 mm in thread profiles M, MF, UNC, UNF and G.
- Application
General Purpose and Material Specific Applications
