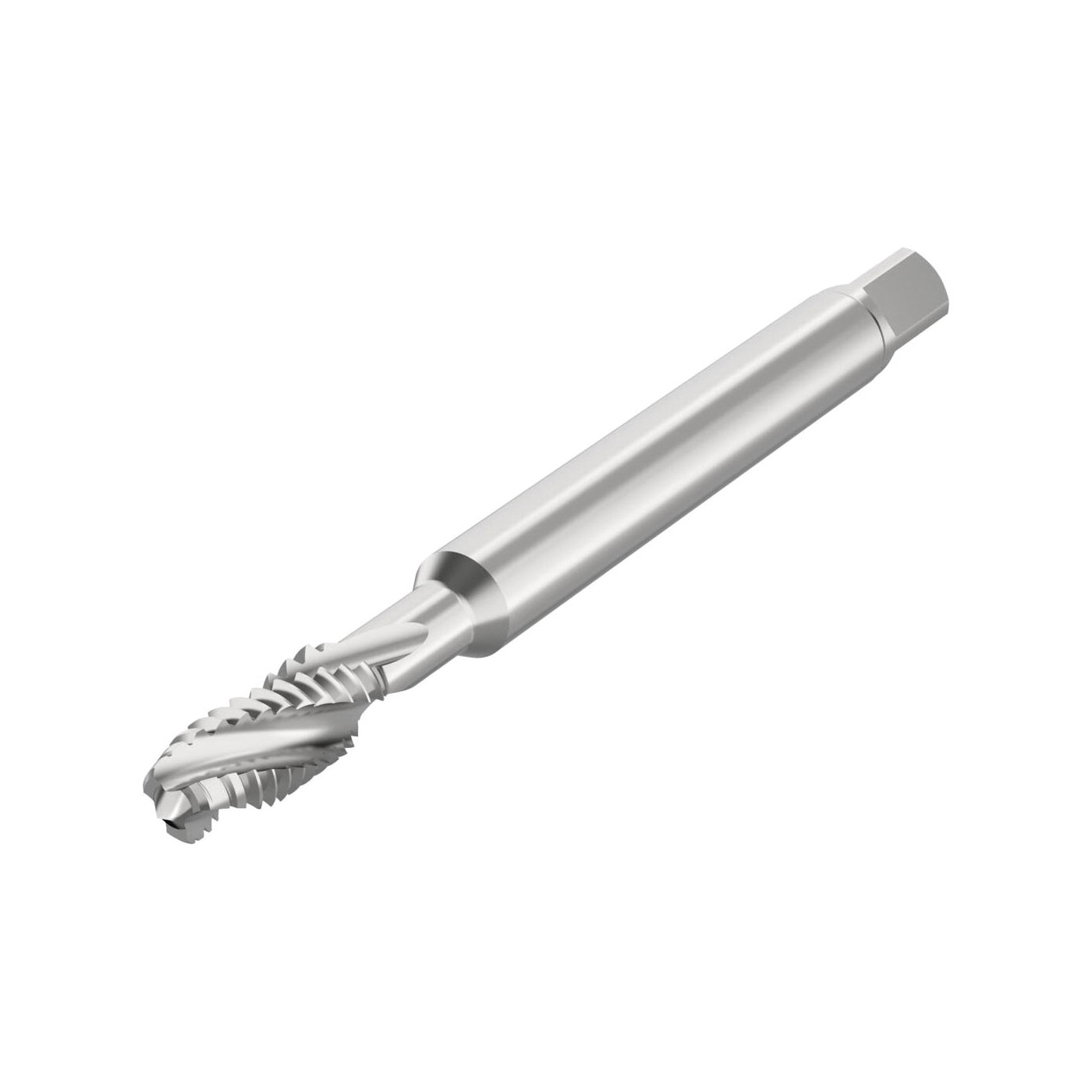

MTH-1/4-28UNF3B-BC-S041 BLIND HOLE TAP
MTH-1/4-28UNF3B-BC-S041 BLIND HOLE TAP
SEC10001130
10001130
74.83
/ EA
http://schema.org/OutOfStock
/Product/SEC10001130
- Chamfer: Modified Bottoming
- Class of Fit: 3B
- Material: HSS-E-PM
- Number of Flutes: 3
- Overall Length Decimal Inch: 3.15
- Overall Length Metric: 80.01
- Shank Diameter: 0.276 in, 0.276in
- Size: 0.253 in, 0.253in
- Surface Treatment: UNCOATED
- System of Measurement: Imperial
- Thread Length: 0.591 in, 0.591in
- Thread Limit: 3B
- Thread Size: 1/4-28
- Thread Standard: UNF
- Through Coolant (Yes/No): No
- Type: Helix Blind Hole
- Applicable Materials: Superalloy and Titanium
- Country of Origin: DE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Seco Tools
Seco's range of 351 helix point and 73 straight threading taps for blind holes are available for general-purpose and material-specific applications. Many are available in both with and without internal coolant in both helix and straight fluted taps. Tap dimensions for general-purpose range from 3 to 64 mm and in thread profiles M, MF, UNC, UNF, G, NPT and NPTF. Material-specific (ISO P, M and N) helix taps cover 1.6 to 30 mm in thread profiles M and MF. Straight fluted (ISO-K) thread profiles cover 3 to 42 mm in thread profiles M, MF, UNC, UNF and G.
- Application
General Purpose and Material Specific Applications
