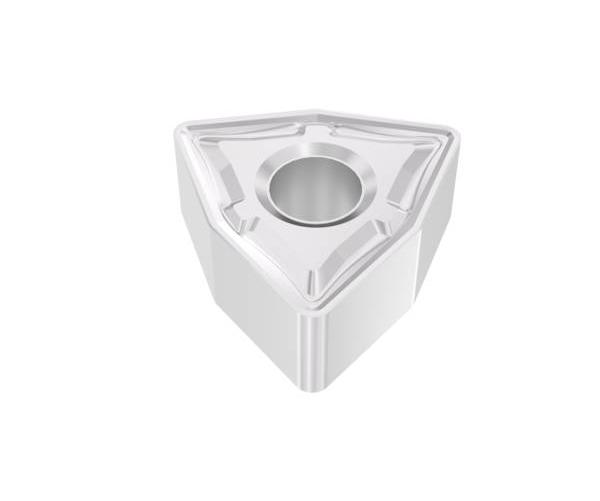

WNMG443-M5 TM2501 INSERT
WNMG443-M5 TM2501 INSERT
SEC03276723
03276723
22.55
/ EA
http://schema.org/OutOfStock
/Product/SEC03276723
- Corner Radius: 1.2 mm, 1.2mm
- Hand Direction: Neutral
- Hole Diameter: 5.15 mm, 5.15mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Style: WNMG
- ISO Code: WNMG080612
- Material: Carbide
- Rake: Negative
- Relief Angle: 17 deg, 17°
- Shape: Trigon
- Surface Treatment: TiCN/Al2O3
- Thickness: 6.35 mm, 6.35mm
- Type: Insert
- Manufacturer Grade: TM2501
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.25 mm, 8.25mm
- Manufacturer Name: Seco Tools
- Series: WNMG
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness
- First choice in austenitic stainless steel turning, complements in steel turning with heavy intermittent cuts
- Used Edge Detection (Chrome)
