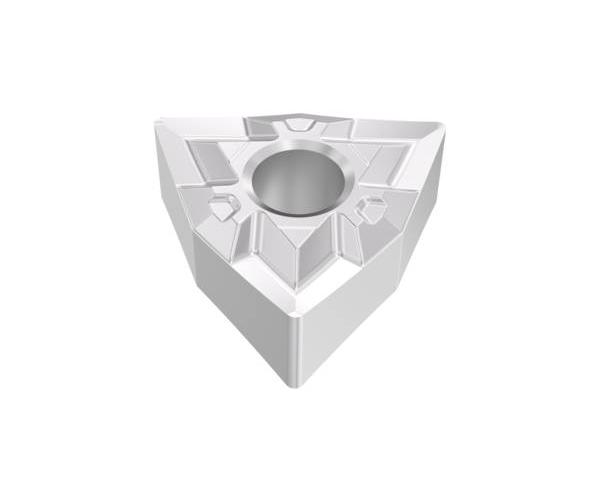

WNMP432-MF1 TM3501 INSERT
WNMP432-MF1 TM3501 INSERT
SEC03276721
03276721
20.77
/ EA
http://schema.org/OutOfStock
/Product/SEC03276721
- Corner Radius: 0.8 mm, 0.8mm
- Hand Direction: Neutral
- Hole Diameter: 5.15 mm, 5.15mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Style: WNMP
- ISO Code: WNMG080408
- Material: Carbide
- Rake: Negative
- Relief Angle: 18 deg, 18°
- Shape: Trigon
- Surface Treatment: TiCN/Al2O3
- Thickness: 4.76 mm, 4.76mm
- Type: Insert
- Manufacturer Grade: TM3501
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 8.4 mm, 8.4mm
- Manufacturer Name: Seco Tools
- Series: WNMP
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,first choice in duplex and more difficult-to-cut stainless steels and highly resistant to notch wear and chipping
- Superior in finishing and in intermittent cuts in all stainless steel alloys
- Versatile grade, covering a variety of stainless steel alloys and operations
