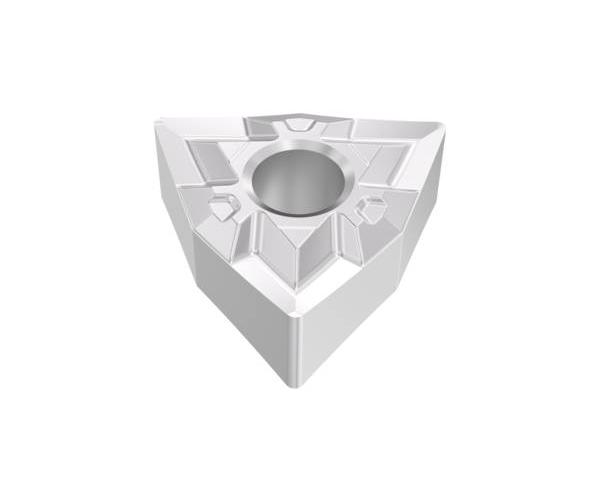

WNMP431-MF1 TM3501 INSERT

WNMP431-MF1 TM3501 INSERT

SEC03276716 03276716
20.77 / EA
http://schema.org/OutOfStock
  • Corner Radius: 0.4 mm, 0.4mm
  • Hand Direction: Neutral
  • Hole Diameter: 5.15 mm, 5.15mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 12.7 mm, 12.7mm
  • Insert Style: WNMP
  • ISO Code: WNMG080404
  • Material: Carbide
  • Rake: Negative
  • Relief Angle: 18 deg, 18°
  • Shape: Trigon
  • Surface Treatment: TiCN/Al2O3
  • Thickness: 4.76 mm, 4.76mm
  • Type: Insert
  • Manufacturer Grade: TM3501
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 8.54 mm, 8.54mm
  • Manufacturer Name: Seco Tools
  • Series: WNMP
QTY
  • Item Features
  • Standards
  • Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
  • Duratomic grade,first choice in duplex and more difficult-to-cut stainless steels and highly resistant to notch wear and chipping
  • Superior in finishing and in intermittent cuts in all stainless steel alloys
  • Versatile grade, covering a variety of stainless steel alloys and operations
  • Used Edge Detection (Chrome)
