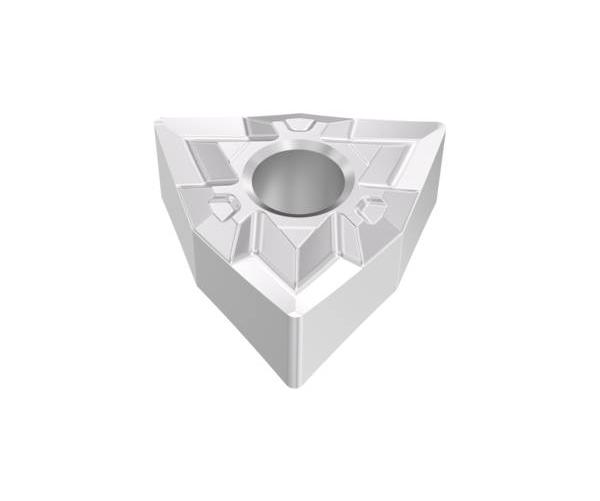

WNMP332-MF1 TM1501 INSERT

WNMP332-MF1 TM1501 INSERT

SEC03276703 03276703
17.01 / EA
http://schema.org/OutOfStock
  • Corner Radius: 0.8 mm, 0.8mm
  • Hand Direction: Neutral
  • Hole Diameter: 3.81 mm, 3.81mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 9.525 mm, 9.525mm
  • Insert Style: WNMP
  • ISO Code: WNMG060408
  • Material: Carbide
  • Rake: Negative
  • Relief Angle: 18 deg, 18°
  • Shape: Trigon
  • Surface Treatment: TiCN/Al2O3
  • Thickness: 4.76 mm, 4.76mm
  • Type: Insert
  • Manufacturer Grade: TM1501
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 6.22 mm, 6.22mm
  • Manufacturer Name: Seco Tools
  • Series: WNMP
QTY
  • Application
  • Item Features
  • Standards
For many continuous cut in stainless steel turning applications
  • Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
  • Duratomic graade, Highly resistant and optimized grade for many continuous cut in stainless steel turning applications
  • Complements in mixes of steel and stainless steel turning
