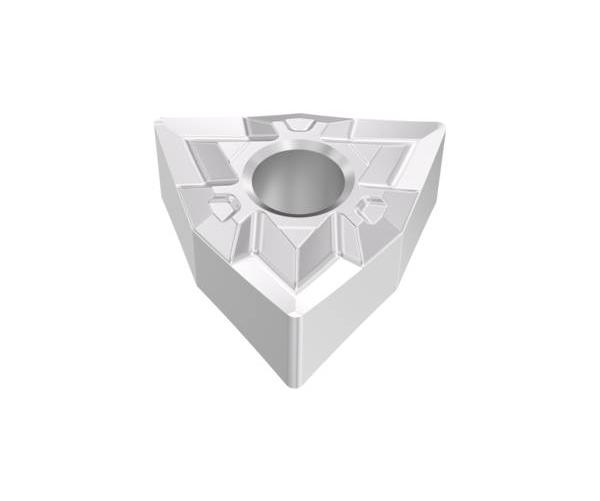

WNMP331-MF1 TM3501 INSERT
WNMP331-MF1 TM3501 INSERT
SEC03276696
03276696
17.48
/ EA
http://schema.org/OutOfStock
/Product/SEC03276696
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 3.81 mm, 3.81mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 9.525 mm, 9.525mm
- Insert Style: WNMP
- ISO Code: WNMG060404
- Material: Carbide
- Rake: Negative
- Relief Angle: 18 deg, 18°
- Shape: Trigon
- Surface Treatment: TiCN/Al2O3
- Thickness: 4.76 mm, 4.76mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 6.37 mm, 6.37mm
- Manufacturer Grade: TM3501
- Manufacturer Name: Seco Tools
- Series: WNMP
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,first choice in duplex and more difficult-to-cut stainless steels and highly resistant to notch wear and chipping
- Superior in finishing and in intermittent cuts in all stainless steel alloys
- Versatile grade, covering a variety of stainless steel alloys and operations
- Used Edge Detection (Chrome)
