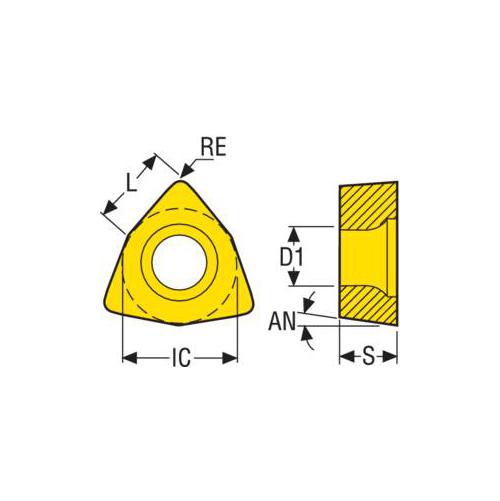

WCMT32.52-F1 TM3501 INSERT
WCMT32.52-F1 TM3501 INSERT
SEC03276634
03276634
23.59
/ EA
http://schema.org/OutOfStock
/Product/SEC03276634
- Corner Radius: 0.8 mm, 0.8mm
- Hand Direction: Neutral
- Hole Diameter: 4.5 mm, 4.5mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 9.525 mm, 9.525mm
- Insert Style: WCMT
- ISO Code: WCMT06T308
- Material: Carbide
- Rake: Positive
- Relief Angle: 17, 7 deg, 17, 7°
- Shape: Trigon
- Surface Treatment: TiCN/Al2O3
- Thickness: 3.97 mm, 3.97mm
- Type: Insert
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Length: 6.22 mm, 6.22mm
- Manufacturer Grade: TM3501
- Manufacturer Name: Seco Tools
- Series: WCMT
- Item Features
- Standards
- Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
- Duratomic grade,first choice in duplex and more difficult-to-cut stainless steels and highly resistant to notch wear and chipping
- Superior in finishing and in intermittent cuts in all stainless steel alloys
- Versatile grade, covering a variety of stainless steel alloys and operations
- Used Edge Detection (Chrome)
