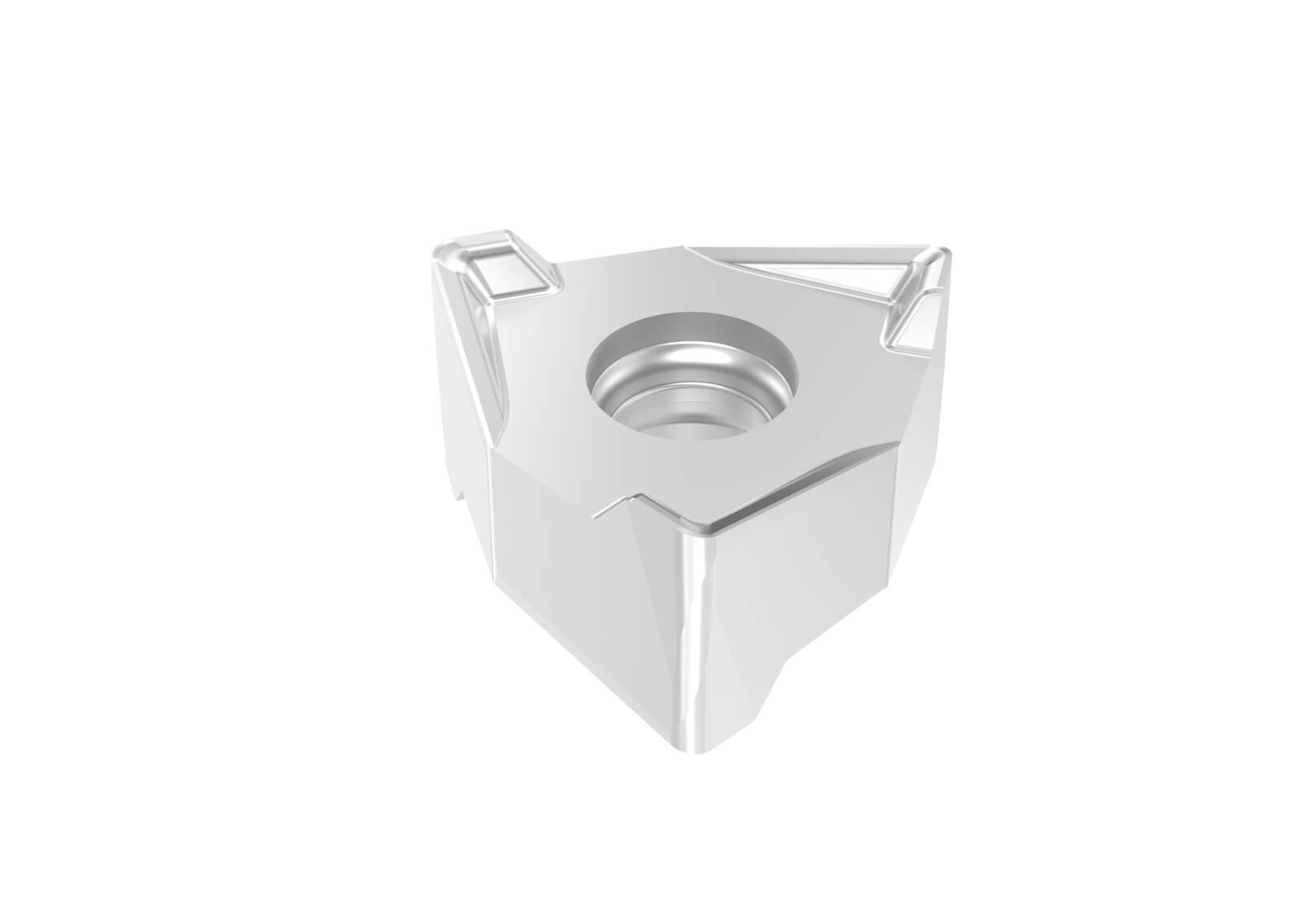

XNEX080608TR-MD15 MP1501
XNEX080608TR-MD15 MP1501
SEC03272917
03272917
408.73
/ PK
http://schema.org/OutOfStock
/Product/SEC03272917
- Chipbreaker: MD15
- Clearance Angle: 0°
- Corner Radius: 0.031in, 0.8 mm, 0.8mm
- Fixing Hole Diameter: 0.181in
- Geometry: MD
- Hand of Insert: Right, Right Hand
- Inscribed Circle: 0.491in, 12.48 mm, 12.48mm
- Insert Size: 80608
- Insert Style: XNEX
- Length: 19/64 in, 19/64in
- Material: Carbide
- Rake: Negative
- Rake Angle: 17°
- Shape: Trigon
- Surface Treatment: CVD
- Thickness: 0.251 in, 0.251in, 0.254in
- Tool Type: Insert
- Type: Square
- Wiper Edge Length: 0.055in
- ANSI Designation: XNEX080608TR-MD15
- Country of Origin: SE
- Cutting Edge Angle: 90°
- Cutting Edge Length: 0.295in
- Has Attributes: Yes
- Has Image: Yes
- Included Angle: 88.28°
- ISO Designation: XNEX080608TR-MD15
- Manufacturer Grade: MP1501
- Manufacturer Name: Seco Tools
- Material Grade: Carbide CVD
- Old Manufacturer Number: 03272917
- Seat Size: XNEX08..
- Series: XNEX
- Width: 19/64 in, 19/64in
- Item Features
- Standards
- CVD-coated grade based on Duratomic coating
- Grade for high performance and productivity in steel material under stable conditions and for milliing hardened steel
- Excellent grade for grey and nodular cast iron
