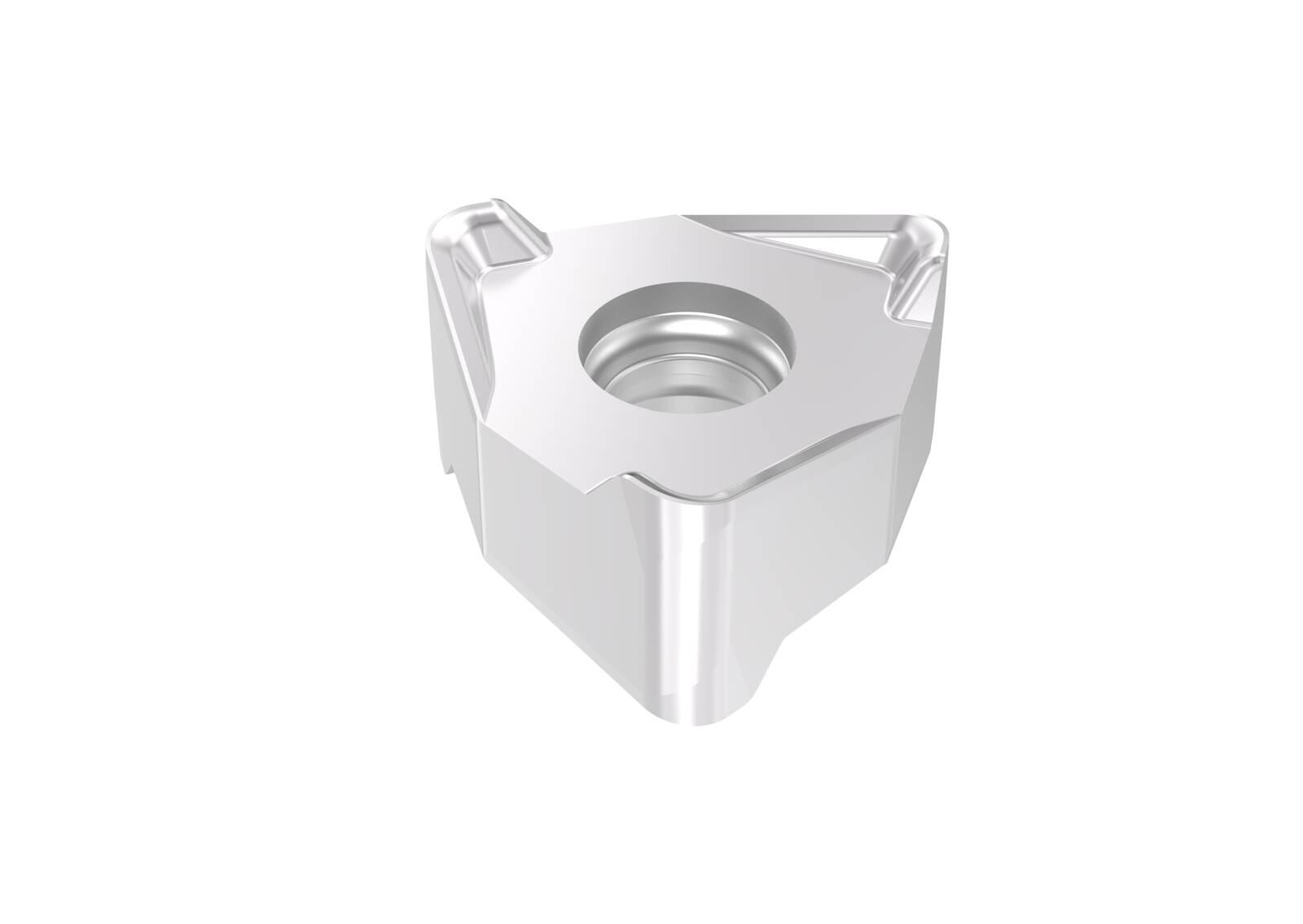

XNEX080616TR-M13 MP2501
XNEX080616TR-M13 MP2501
SEC03272913
03272913
408.73
/ PK (10)
http://schema.org/OutOfStock
/Product/SEC03272913
- Chipbreaker: M13
- Clearance Angle: 0°
- Corner Radius: 0.063in, 1.6 mm, 1.6mm
- Fixing Hole Diameter: 0.181in
- Geometry: M
- Hand of Insert: Right, Right Hand
- Inscribed Circle: 0.491in, 12.48 mm, 12.48mm
- Insert Size: 80616
- Insert Style: XNEX
- Material: Carbide
- Rake: Negative
- Rake Angle: 22°
- Shape: Trigon
- Surface Treatment: CVD
- Thickness: 0.251 in, 0.251in, 0.254in
- Tool Type: Insert
- Type: Threaded
- Wiper Edge Length: 0.02in
- ANSI Designation: XNEX080616TR-M13
- Country of Origin: SE
- Cutting Edge Angle: 90°
- Cutting Edge Length: 0.295in
- Has Attributes: Yes
- Has Image: Yes
- Included Angle: 88.28°
- ISO Designation: XNEX080616TR-M13
- Manufacturer Grade: MP2501
- Manufacturer Name: Seco Tools
- Material Grade: Fine Grain
- Old Manufacturer Number: 03272913
- Seat Size: XNEX08..
- Series: XNEX
- Width: 19/64 in, 19/64in
- Item Features
- Standards
- CVD-coated grade based on Duratomic coating, First choice in steel for maximizing manufacturing output under most varying productivity
- Alternative choice stainless steel applications under stable condition
