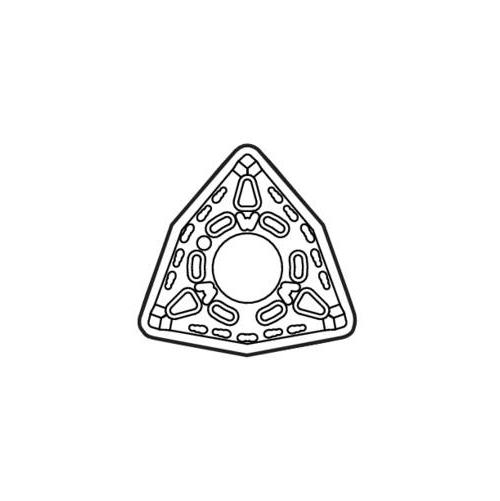

WNMG433W-M6 TP3501 ISO-P TURNING INSERT

WNMG433W-M6 TP3501 ISO-P TURNING INSERT

SEC03099770 03099770
24.15 / EA
http://schema.org/OutOfStock
  • Chipbreaker: M6
  • Corner Radius: 0.047 in, 0.047in
  • Hand Direction: Neutral
  • Hole Diameter: 0.50 in, 0.50in
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 0.500 in, 0.500in
  • Insert Style: WNMG
  • Material Grade: Carbide CVD
  • Seat Size: 8
  • Shape: Trigon
  • Thickness: 0.187 in, 0.187in
  • Manufacturer Grade: TP3501
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Seco Tools
  • Series: WNMG
QTY
  • Application
  • Item Features
  • Standards
For versatile performance in turning applications
  • Nanoscience at its best, the Duratomic CVD aluminum-oxide coating process manipulates coating components at an atomic level to improve the mechanical properties as well as the thermal and chemical inertness of many of the company's products
  • Duratomic grade, Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steels especially including interrupted cuts
  • Used Edge Detection (Chrome)
  • https://www.youtube.com/embed/dVbJlS9LEWI?enablejsapi=1&autoplay=true&fs=1&rel=0
