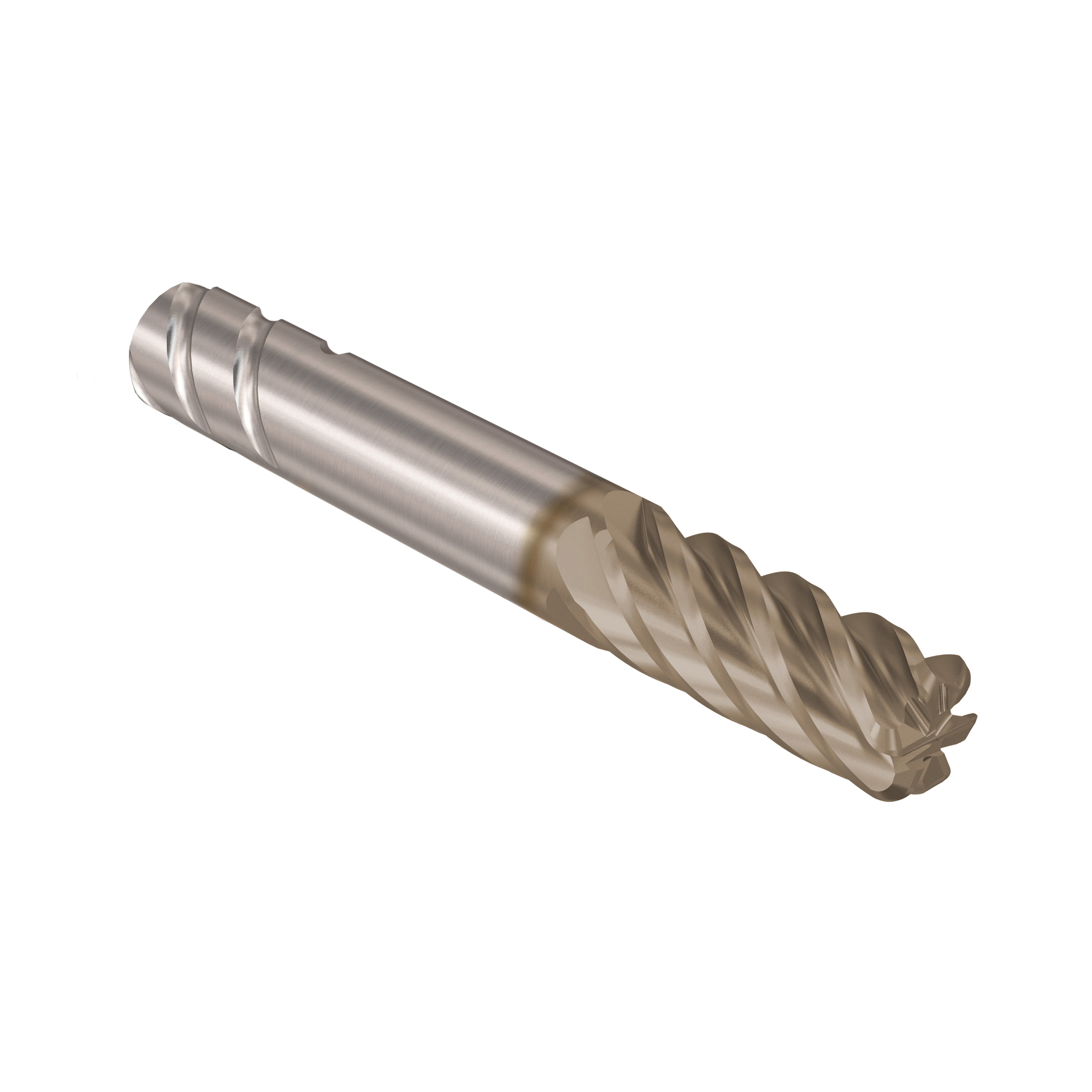

JS720080D2R050.9Z6-HXT JABRO SOLID

JS720080D2R050.9Z6-HXT JABRO SOLID

SEC03060376 03060376
150.12 / EA
http://schema.org/OutOfStock
  • Corner Radius: 0.5 mm, 0.5mm
  • Cutter Diameter Decimal Inch: 0.315
  • Cutter Diameter Metric: 8
  • Type: High Performance Single End
  • Number of Flutes: 6
  • Length of Cut Decimal Inch: 0.906
  • Length of Cut Fractional Inch: 29/32
  • Length of Cut Metric: 23, 23.012
  • Overall Length Decimal Inch: 63
  • Overall Length Metric: 1600.2
  • Material: Solid Carbide
  • Surface Treatment: HXT/PVD Coated
  • Helix Angle: 38 deg, 38°
  • Shank Diameter Decimal Inch: 0.315
  • Shank Diameter Metric: 8
  • Shank Type: Safe-Lock™
  • Series: JABRO® Solid2 JS720
  • ANSI Code: JS720080D2R050.9Z6-HXT
  • Country of Origin: NL
  • Flute Type: Right Spiral
  • Hand Direction: Right Hand
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Seco Tools
Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.
QTY
  • Application
  • Item Features
General Machining, Radial, Ramping, Plunging and Drilling
