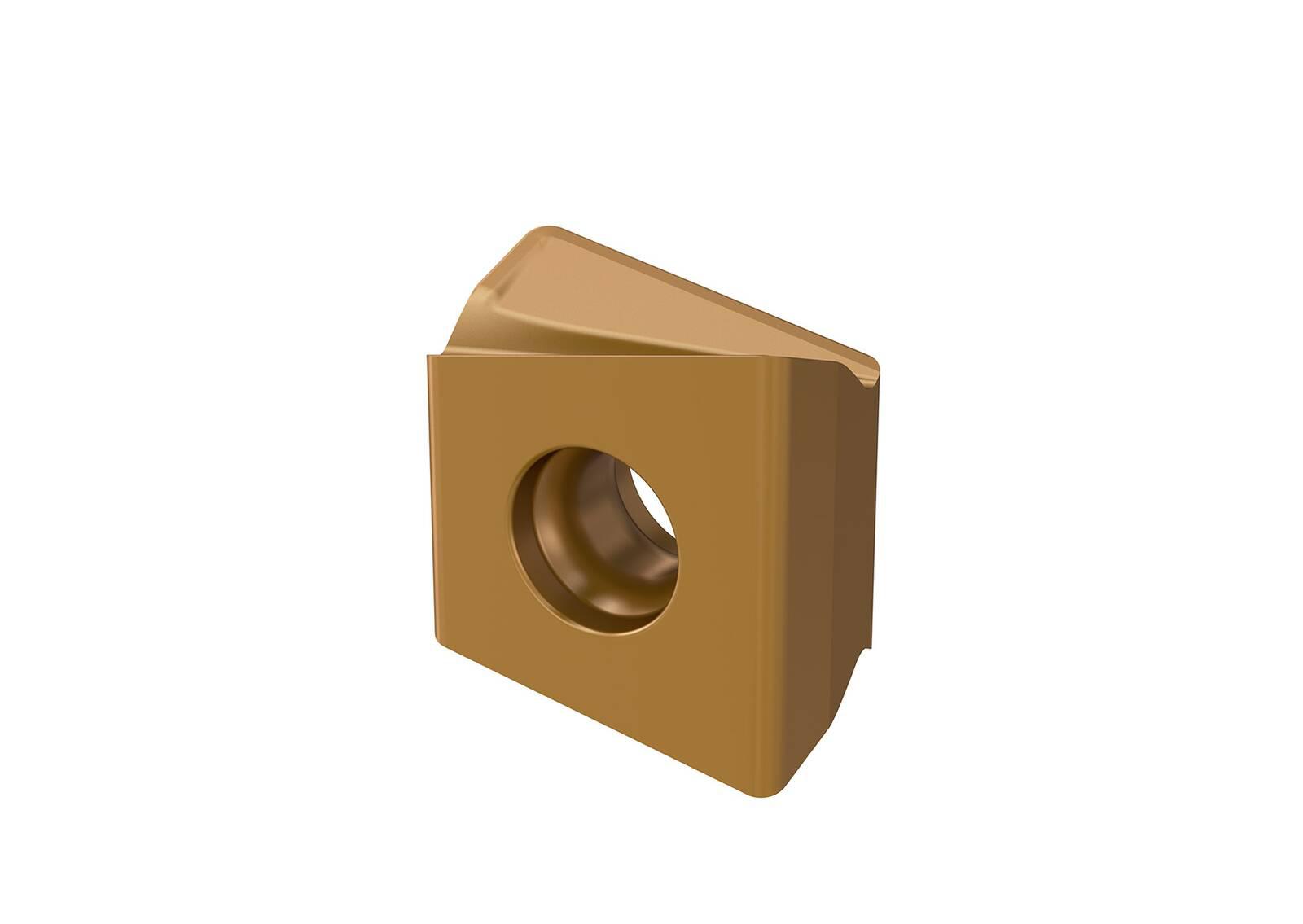

XNHQ120631TN4-M10 F40M MILLING INSERT
  • Chipbreaker: M10
  • Corner Radius: 3.1 mm, 3.1mm
  • Hand of Insert: Neutral
  • Insert Style: XNHQ
  • Length: 0.488 in, 0.488in
  • Material: Carbide
  • Rake: Negative
  • Thickness: 0.493 in, 0.493in
  • Type: Threaded
  • ANSI Code: XNHQ120631TN4-M10
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: XNHQ120631TN4-M10
  • Manufacturer Grade: F40M
  • Manufacturer Name: Seco Tools
  • Series: XNHQ
  • Width: 0.253 in, 0.253in
QTY
Add to List
  • Application
  • Item Features
  • Standards
For tackles any challenges brought by disc milling applications
  • Developed with extensive research to ensure they meet the needs to today's materials and machining processes, tackles any challenges brought by disc milling applications
  • PVD-coated grade for fine to medium rough milling, first choice for milling with small feeds and/or low cutting speeds
  • Excellent for milling when there is a risk of vibrations and when coolant is used
  • Recommended for machining superalloys
