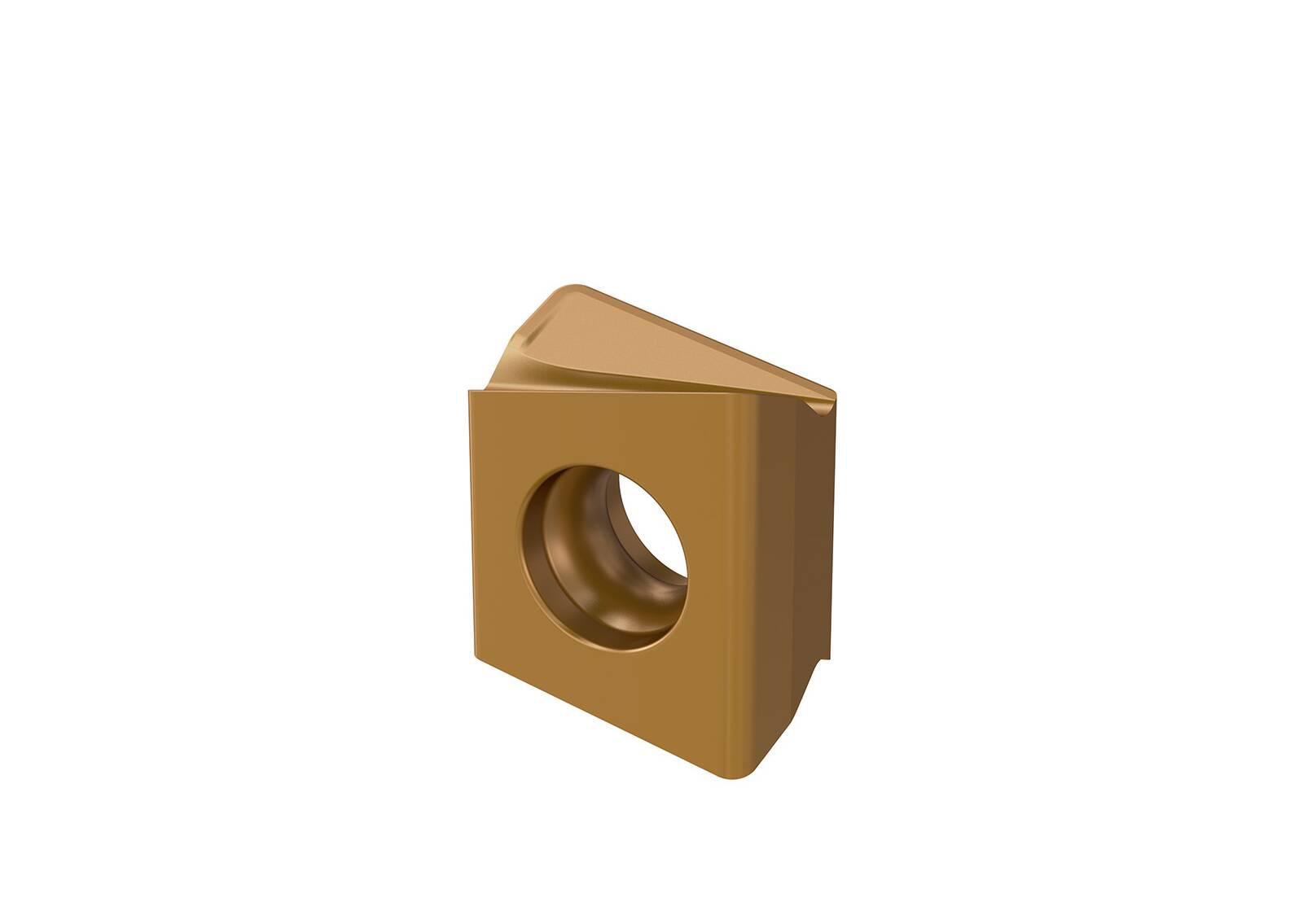

XNHQ090516TN4-M08 F40M MILLING INSERT

XNHQ090516TN4-M08 F40M MILLING INSERT

SEC02989573 02989573
47.29 / EA
http://schema.org/OutOfStock
XNHQ090516TN4-M08 F40M MILLING INSERT
  • Chipbreaker: M08
  • Corner Radius: 1.6 mm, 1.6mm
  • Hand of Insert: Neutral
  • Inscribed Circle: 0.21 in, 0.21in
  • Insert Size: 90516
  • Insert Style: XNHQ
  • Length: 0.446 in, 0.446in
  • Material: Carbide
  • Rake: Negative
  • Thickness: 0.45 in, 0.45in
  • Type: Threaded
  • ANSI Code: XNHQ090516TN4-M08
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: XNHQ090516TN4-M08
  • Manufacturer Grade: F40M
  • Manufacturer Name: Seco Tools
  • Series: XNHQ
  • Width: 0.214 in, 0.214in
QTY
Add to List
  • Application
  • Item Features
  • Standards
For tackles any challenges brought by disc milling applications
  • Developed with extensive research to ensure they meet the needs to today's materials and machining processes, tackles any challenges brought by disc milling applications
  • PVD-coated grade for fine to medium rough milling, first choice for milling with small feeds and/or low cutting speeds
  • Excellent for milling when there is a risk of vibrations and when coolant is used
  • Recommended for machining superalloys
