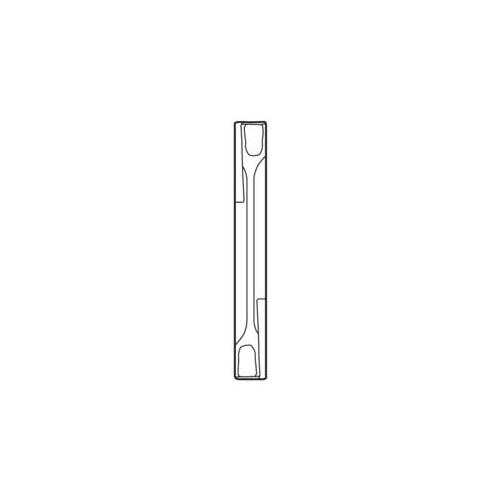

X4GK2503010-0200LN-MC TGH1050 INSERT

X4GK2503010-0200LN-MC TGH1050 INSERT

SEC02968206 02968206
75.73 / EA
http://schema.org/OutOfStock
X4GK2503010-0200LN-MC TGH1050 INSERT
  • Corner Radius: 0.004 in, 0.004in
  • Country of Origin: SE
  • Cutting Height: 0.803 in, 0.803in
  • Cutting Width: 0.079 in, 0.079in
  • Hand Direction: Left Hand
  • Insert Size: 2503010
  • Insert Style: X4GKL
  • Length: 0.748 in, 0.748in
  • Manufacturer Name: Seco Tools
  • Material: Carbide
  • Maximum Depth of Cut: 0.256 in, 0.256in
  • Thickness: 0.803 in, 0.803in
  • Manufacturer Grade: TGH1050
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Item Features
  • Standards
  • Optimized for parting-off and grooving primarily small parts
  • Consists of indexable tangential inserts and a highly stable clamp design
  • These strong, dependable system components achieve high accuracy, repeatability, productivity and surface quality in external grooving and parting-off operations involving small parts and slim bars and tubes made from a wide variety of work materials
