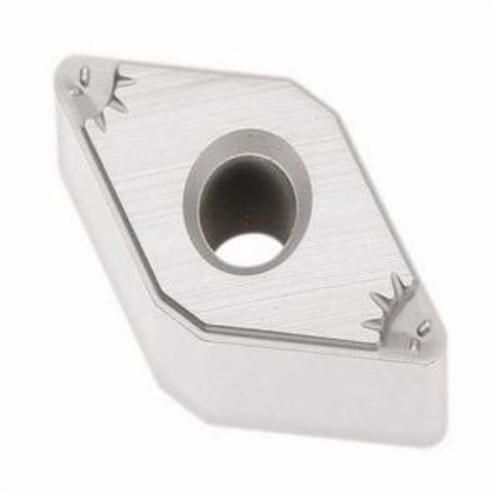

DNMG442-MF5 TP0501 DURATOMIC INSERT
DNMG442-MF5 TP0501 DURATOMIC INSERT
SEC02960735
02960735
25.84
/ EA
http://schema.org/OutOfStock
/Product/SEC02960735
- Applicable Materials: Steel
- Chipbreaker: MF5
- Corner Radius: 0.8 mm, 0.8mm
- Hand Direction: Neutral
- Hole Diameter: 5.15 mm, 5.15mm
- Included Angle: 55 deg, 55°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Size: 150608
- Insert Style: DNMG
- ISO Code: DNMG150608-MF5 TP0501
- Material: Carbide
- Material Grade: P
- Maximum Depth of Cut Decimal Inch: 0.207
- Maximum Depth of Cut Metric: 5.25
- Rake: Negative
- Relief Angle: 0 deg, 0°
- Seat Size: 15
- Shape: Diamond
- Surface Treatment: CVD-TiCN+Al2O3 Coated
- Thickness: 6.35 mm, 6.35mm
- Manufacturer Grade: TP0501
- ANSI Code: DNMG442-MF5 TP0501
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Seco Tools
- Application
- Item Features
Medium and Finishing
