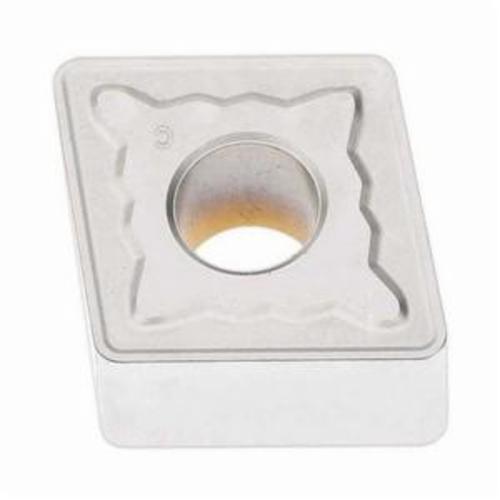

CNMG544-MR7 TP1501 DURATOMIC INSERT
CNMG544-MR7 TP1501 DURATOMIC INSERT
SEC02960471
02960471
29.69
/ EA
http://schema.org/OutOfStock
/Product/SEC02960471
- Applicable Materials: Steel
- Chipbreaker: MR7
- Corner Radius: 1.6 mm, 1.6mm
- Hand Direction: Neutral
- Hole Diameter: 6.35 mm, 6.35mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 15.88 mm, 15.88mm
- Insert Size: 160616
- Insert Style: CNMG
- ISO Code: CNMG160616-MR7 TP1501
- Material: Carbide
- Material Grade: P
- Maximum Depth of Cut: 8 mm, 8mm
- Rake: Negative
- Relief Angle: 0 deg, 0°
- Seat Size: 16
- Shape: Diamond
- Surface Treatment: CVD-TiCN+Al2O3 Coated
- Thickness: 6.35 mm, 6.35mm
- Manufacturer Grade: TP1501
- ANSI Code: CNMG544-MR7 TP1501
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Seco Tools
- Application
- Item Features
Medium and Roughing
