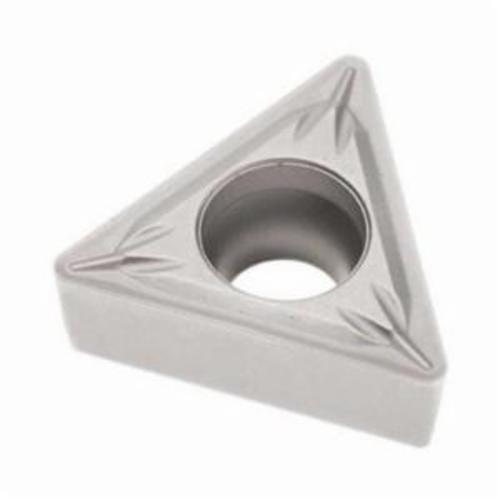

TCMT32.52-MF2 TP2501 TURNING INSERT

TCMT32.52-MF2 TP2501 TURNING INSERT

SEC02956323 02956323
18.32 / EA
http://schema.org/OutOfStock
TCMT32.52-MF2 TP2501 TURNING INSERT
  • Applicable Materials: Steel
  • Chipbreaker: MF2
  • Corner Radius: 0.8 mm, 0.8mm
  • Hand Direction: Neutral
  • Hole Diameter: 4.5 mm, 4.5mm
  • Included Angle: 60 deg, 60°
  • Inscribed Circle: 9.52 mm, 9.52mm
  • Insert Size: 16T308
  • Insert Style: TCMT
  • ISO Code: TCMT16T308-MF2 TP2501
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut: 3.75 mm, 3.75mm
  • Rake: Negative/Positive
  • Relief Angle: 7 deg, 7°
  • Seat Size: 16
  • Shape: Triangular
  • Surface Treatment: CVD-TiCN+Al2O3 Coated
  • Thickness: 3.97 mm, 3.97mm
  • Manufacturer Grade: TP2501
  • ANSI Code: TCMT32.52-MF2 TP2501
  • Country of Origin: IN
  • Has Attributes: Yes
  • Has Image: Yes
  • Length: 16.5 mm, 16.5mm
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
  • Item Features
Medium and Finishing
