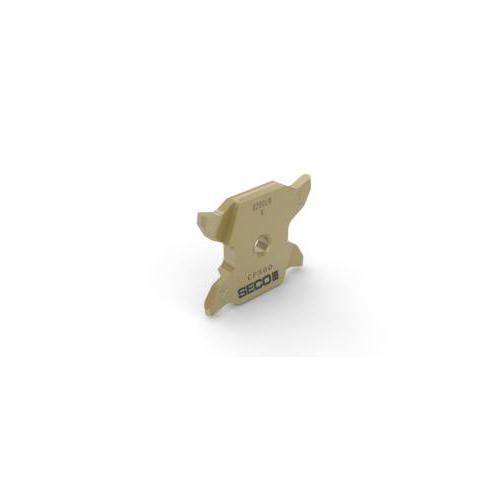

X4GK2503M0-0100LN-R CP500 INSERT

X4GK2503M0-0100LN-R CP500 INSERT

SEC02902993 02902993
72.54 / EA
http://schema.org/OutOfStock
X4GK2503M0-0100LN-R CP500 INSERT
  • Corner Radius: 0.02 in, 0.02in
  • Country of Origin: SE
  • Cutting Height: 0.8 in, 0.8in
  • Cutting Width: 0.039 in, 0.039in
  • Hand Direction: Left Hand
  • Insert Size: 2503M0
  • Insert Style: X4GK
  • Length: 0.747 in, 0.747in
  • Manufacturer Name: Seco Tools
  • Material: Carbide
  • Material Grade: Micrograin
  • Maximum Depth of Cut: 0.169 in, 0.169in
  • Surface Treatment: TiAlN/TiN
  • Thickness: 0.802 in, 0.802in
  • Manufacturer Grade: CP500
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
Especially suitable in intermittent cuts
  • Optimized for parting-off and grooving primarily small parts
  • Consists of indexable tangential inserts and a highly stable clamp design
  • These strong, dependable system components achieve high accuracy, repeatability, productivity and surface quality in external grooving and parting-off operations involving small parts and slim bars and tubes made from a wide variety of work materials
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
  • Especially suitable in intermittent cuts
