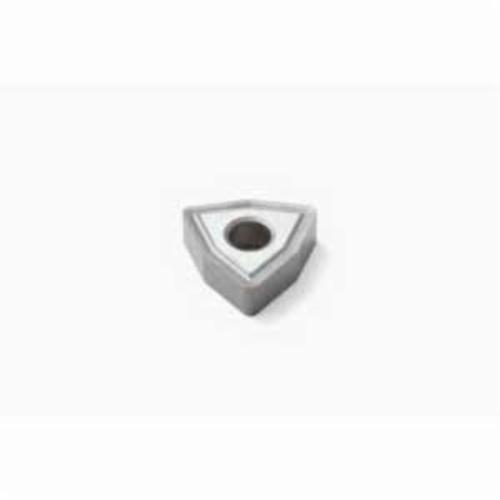

WNMP 431-M1 883 INSERT
  • Applicable Materials: Super Alloys and Titanium
  • Chipbreaker: M1
  • Corner Radius: 0.4 mm, 0.4mm
  • Hand Direction: Neutral
  • Hole Diameter: 5.15 mm, 5.15mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 12.7 mm, 12.7mm
  • Insert Size: 80404
  • Insert Style: WNMG
  • ISO Code: WNMG080404-M1 883
  • Material: Carbide
  • Material Grade: S
  • Maximum Depth of Cut Decimal Inch: 0.197
  • Maximum Depth of Cut Metric: 5.0
  • Rake: Negative
  • Relief Angle: 0 deg, 0°
  • Seat Size: 8
  • Shape: Trigon
  • Surface Treatment: UNCOATED
  • Thickness: 4.76 mm, 4.76mm
  • Manufacturer Grade: 883
  • ANSI Code: WNMP431-M1 883
  • Country of Origin: CZ
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Seco Tools
Pack: 10/PK
