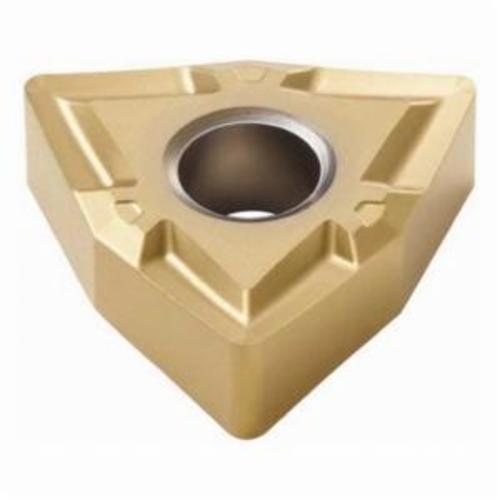

WNMP 333-MF1 CP500 INSERT

WNMP 333-MF1 CP500 INSERT

SEC00000221 00000221
16.72 / EA
http://schema.org/OutOfStock
WNMP 333-MF1 CP500 INSERT
  • Applicable Materials: Stainless Steel, Super Alloys and Titanium
  • Chipbreaker: MF1
  • Corner Radius: 1.2 mm, 1.2mm
  • Hand Direction: Neutral
  • Hole Diameter: 3.81 mm, 3.81mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 9.52 mm, 9.52mm
  • Insert Size: 60412
  • Insert Style: WNMG
  • ISO Code: WNMG060412-MF1 CP500
  • Material: Carbide
  • Material Grade: M, S
  • Maximum Depth of Cut Decimal Inch: 0.148
  • Maximum Depth of Cut Metric: 3.75
  • Rake: Negative
  • Relief Angle: 0 deg, 0°
  • Seat Size: 6
  • Shape: Trigon
  • Surface Treatment: PVD-TiAlN+TiN Coated
  • Thickness: 4.76 mm, 4.76mm
  • Manufacturer Grade: CP500
  • ANSI Code: WNMP333-MF1 CP500
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
  • Item Features
Medium and Finishing
