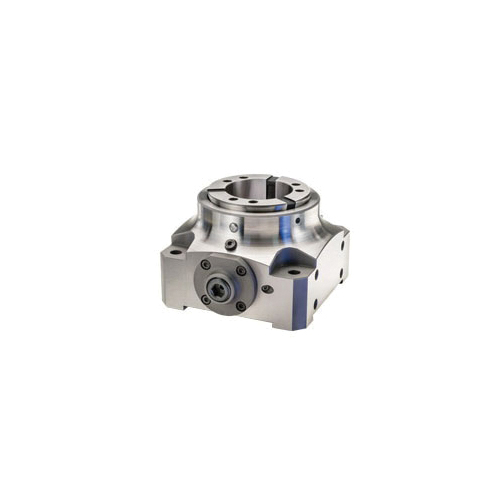

QG-65 2.66x3.94x5.91x4.72x4.72 COLLET

ROY43904 MFG #: 43904
$3,710.00 / EA
  • Base Diameter: 4.72 in
  • Base Length: 5.91 in
  • Base Width: 5.91 in
  • Maximum Collet Capacity: 2.63 in
  • Overall Height: 3.94 in
  • Series: Quick-Grip™ 65
  • Type: Pull Handle
QTY
  • Item Features
  • Royal Products offers two types of collet Fixtures for use on rotary tables, indexers, and stationary applications such as tombstones
  • Our Quick-Grip™ 4th and 5th axis fixtures utilize royal QG-42, 65, 80, and 100-series collets, and feature many of the advantages of our Quick-Grip™ conc. collet Chucks, including ten-second collet changes and a wide .062 in clamping range
  • Pullback operation is achieved through a mechanical/hydraulic assembly
  • An internal back plate enables the use of a stop for precise work piece positioning
  • Unit is actuated via a hybrid mechanical/hydraulic mechanism
  • Many of the same great features as our Quick-Grip™ conc. collet Chucks, including ten-second collet changes and parallel-grip collets with a full .062 in clamping range
  • Pullback design with an internally threaded back plate enables the use of a stop rod
  • Bottom and all four sides are ground for both vertical and horizontal mounting
