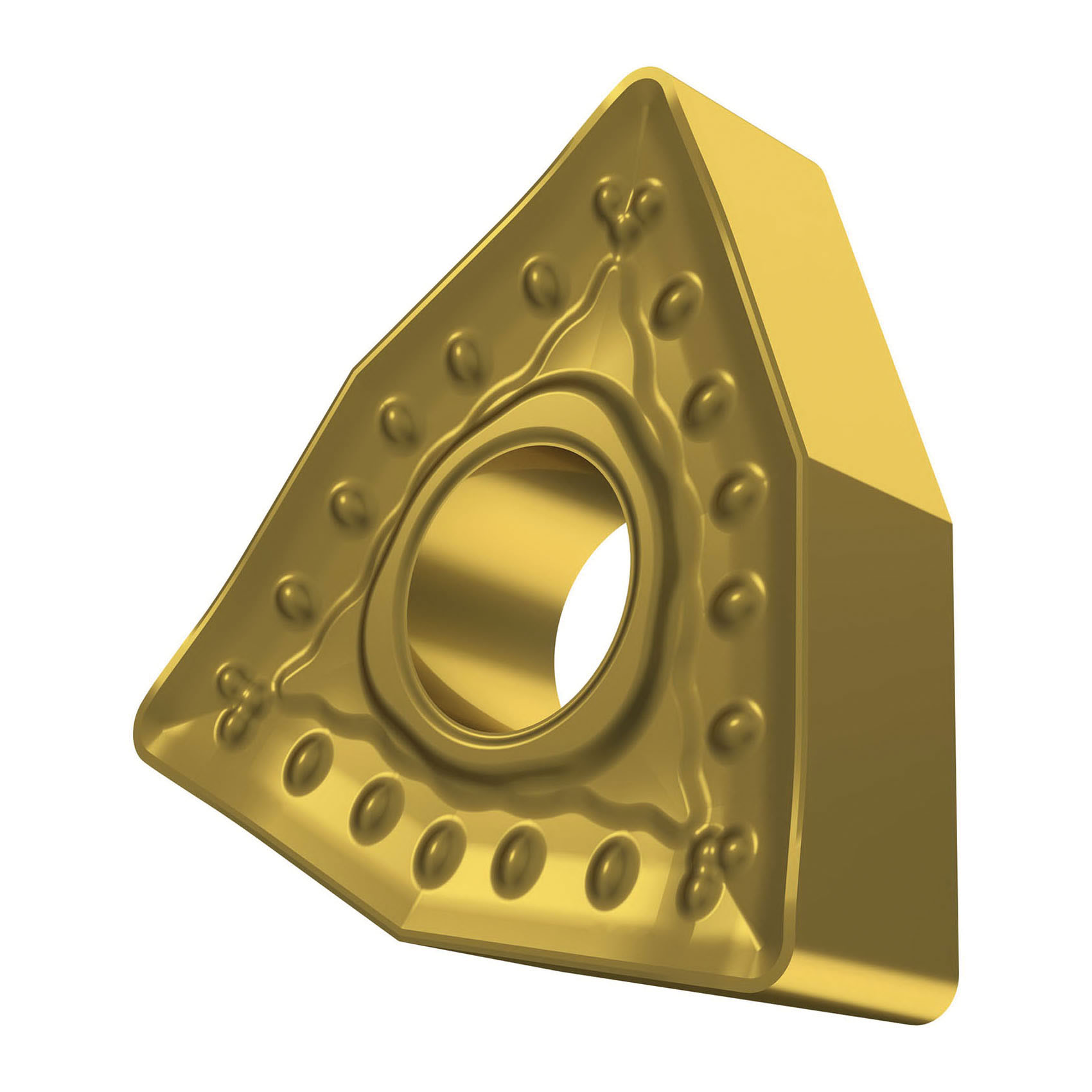

WNMM 080408E-OR:T8430 INSERT

WNMM 080408E-OR:T8430 INSERT

PRA7977447 7977447
10.97 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Cast Iron, Cast Steel, High Temperature Alloys, Stainless Steel and Steel
  • Chipbreaker: OR
  • Corner Radius: 0.031in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 080408
  • Insert Style: WNMM
  • ISO Code: WNMM 080408E-OR:T8430
  • Material: Carbide
  • Material Grade: K, M, P, S
  • Maximum Depth of Cut Decimal Inch: 0.126, 0.157
  • Maximum Depth of Cut Fractional Inch: ,
  • Maximum Depth of Cut Metric: 3.2, 4.0
  • Rake: Negative
  • Relief Angle:
  • Seat Size: 8
  • Shape: Trigon
  • Surface Treatment: PVD/TiAlN+TiN Coated
  • Thickness: 0.187in
  • Type: 0.343in, Indexable
  • Manufacturer Grade: T8430
  • ANSI Code: WNMM 432-OR:T8430
  • Has Attributes: Yes
  • Has Image: Yes
  • Series: WNMM
QTY
  • Item Features
  • Standards
  • Wide chip-groove enhances the chip-control when machining tough materials improving chip evacuation
  • Deep chip-groove reduces cutting forces and vibration
  • Low chip-breaker back wall ensures chip control at higher feeds and depths of cut
  • Positive geometry reduces the cutting forces, temperature and power requirement, exerting less stress on the workpiece, tool and machine spindle which helps to control chatter
  • WC-Co based substrate submicron grained, provides high hardness and abrasive wear-resistance, -resistance against comb cracks
  • PVD coating, enhances thermal cracking--resistance and performance in operations involving cutting temperature fluctuations
  • A multi-layered PVD coating optimized for increased productivity and durability
  • Thick TiN coated with low compressive stress for crater wear-resistance and hard AlTiN layer for flank wear-resistance
  • Unique titanium-boron-nitride (TiBN) top layer for build-up edge reduction and improved performance
  • New coating generation provides increased durability and performance
  • It is the most versatile grade for general turning and heavy roughing, even in unfavorable conditions
FAR: 223.7306|48 CFR 252.223-7008 Prohibition of Hexavalent Chromium|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov|RoHS Directives EU 2015/863/2017/2102
