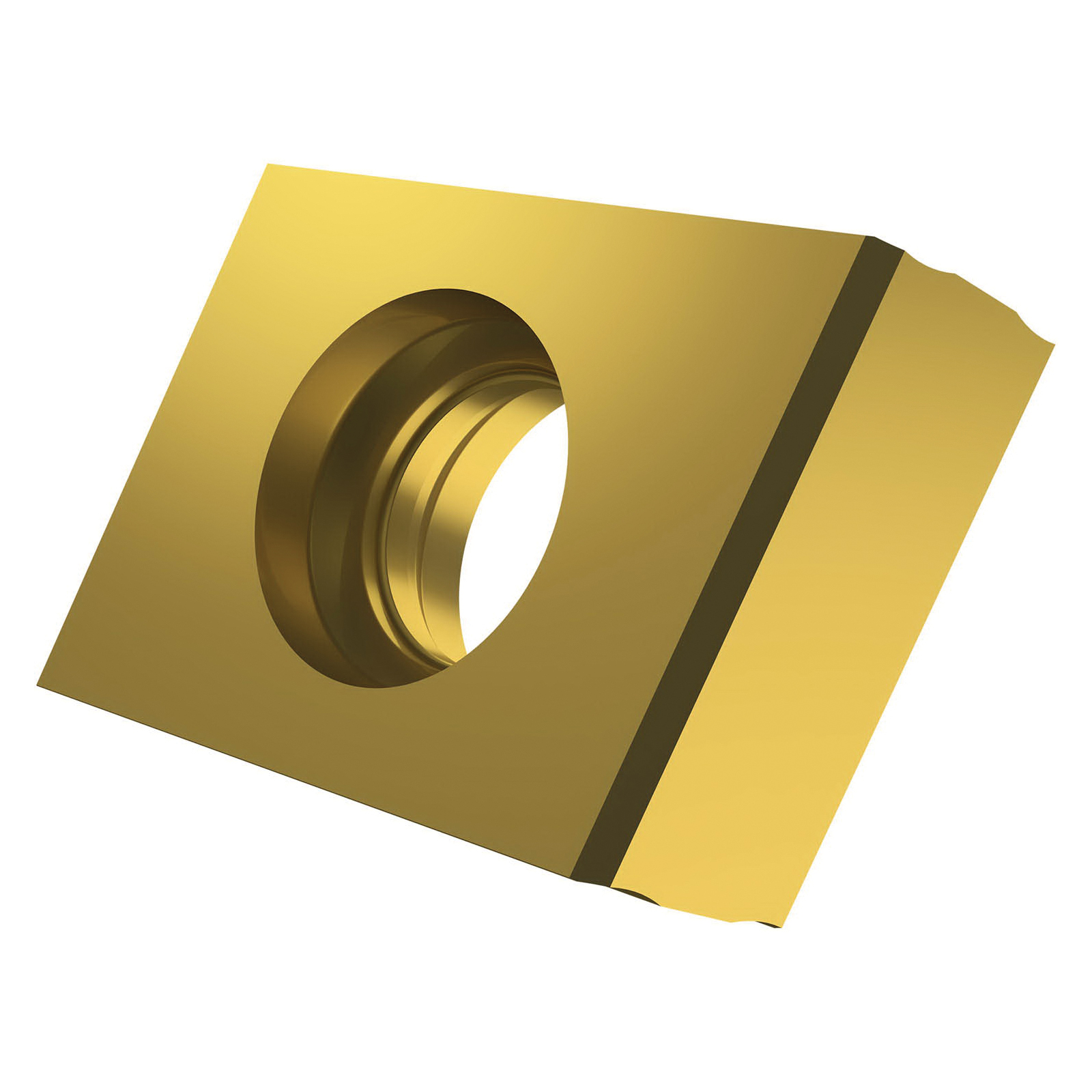

XNHQ 1205AZTN:M8340 MILLING INSERT
XNHQ 1205AZTN:M8340 MILLING INSERT
PRA6803612
6803612
32.25
/ EA
http://schema.org/OutOfStock
/Product/PRA6803612
- ANSI Code: XNHQ -(3.5)AZTN M8340
- Applicable Materials: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloy
- Country of Origin: CZ
- Hand of Insert: Ambidextrous
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 4.7mm
- Inscribed Circle: 10mm
- Insert Size: 1205
- Insert Style: XNHQ
- ISO Code: XNHQ 1205AZTN M8340
- Lead Angle: 0°
- Manufacturer Grade: M8340
- Manufacturer Name: Dormer Pramet
- Material: Carbide
- Shape: 80° Diamond
- Thickness: 5.4mm
- Type: 12.7mm, Negative
- Application
- Item Features
- Standards
General Machining Applications
- Wear resistant type H submicron substrate
- New PVD coating based on AlTiN layers
- Multilayer coating system for enhanced toughness
- Reduces the occurrence and spreading of comb micro cracks
- Suitable for operations with a high thermal load
- Larger chip cross-sections, wide range of cutting speeds
- Unstable working conditions
