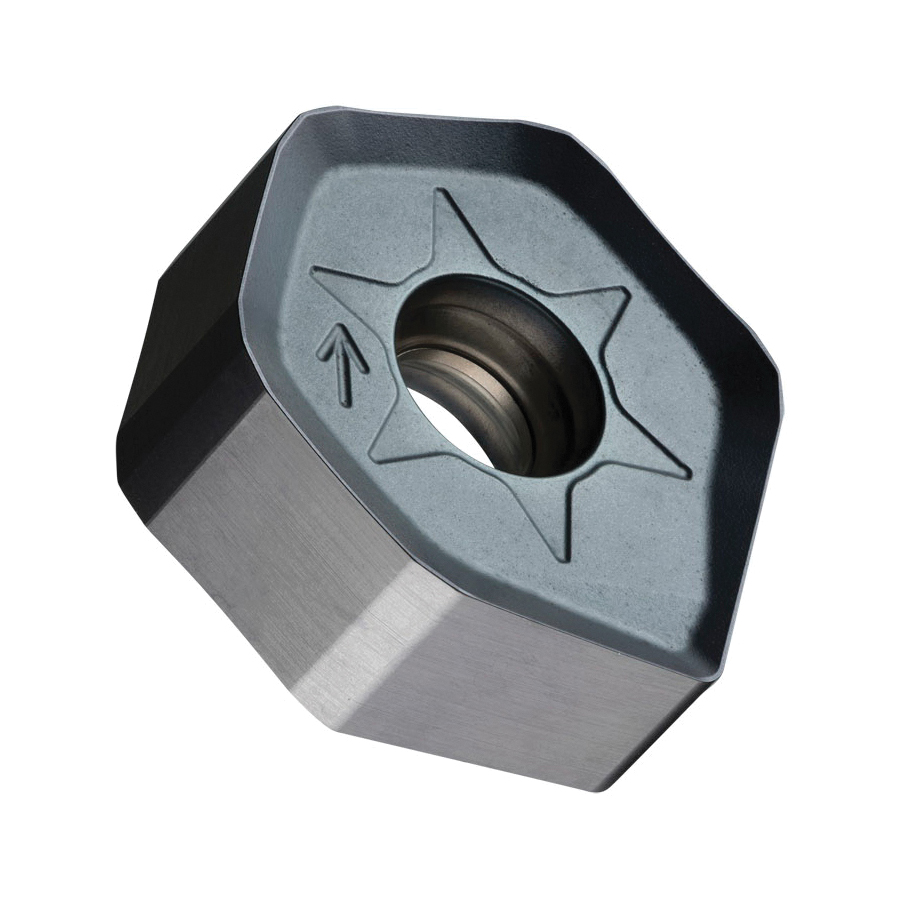

XNGX 0906ANSN:8215 MILLING INSERT
XNGX 0906ANSN:8215 MILLING INSERT
PRA6753568
6753568
24.44
/ EA
http://schema.org/OutOfStock
/Product/PRA6753568
- ANSI Code: XNGX -54ANSN 8215
- Applicable Materials: Steel
- Country of Origin: CZ
- Hand of Insert: Ambidextrous
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 4.9mm
- Inscribed Circle: 16.5mm
- Insert Size: 906
- Insert Style: XNGX
- ISO Code: XNGX 0906ANSN 8215
- Lead Angle: 0°
- Manufacturer Grade: 8215
- Manufacturer Name: Dormer Pramet
- Material: Carbide
- Shape: Wiper
- Thickness: 6.35mm
- Type: Negative
- Application
- Item Features
- Standards
General Machining Applications
- Type H submicron substrate with a relatively low cobalt content
- High abrasion resistance
- New multi layer AlTiN and TiAlSiN based PVD coating
- Very good resistance to spreading micro fissures
- Suitable for operations with a high thermal load, high cutting speeds and stable machining conditions
