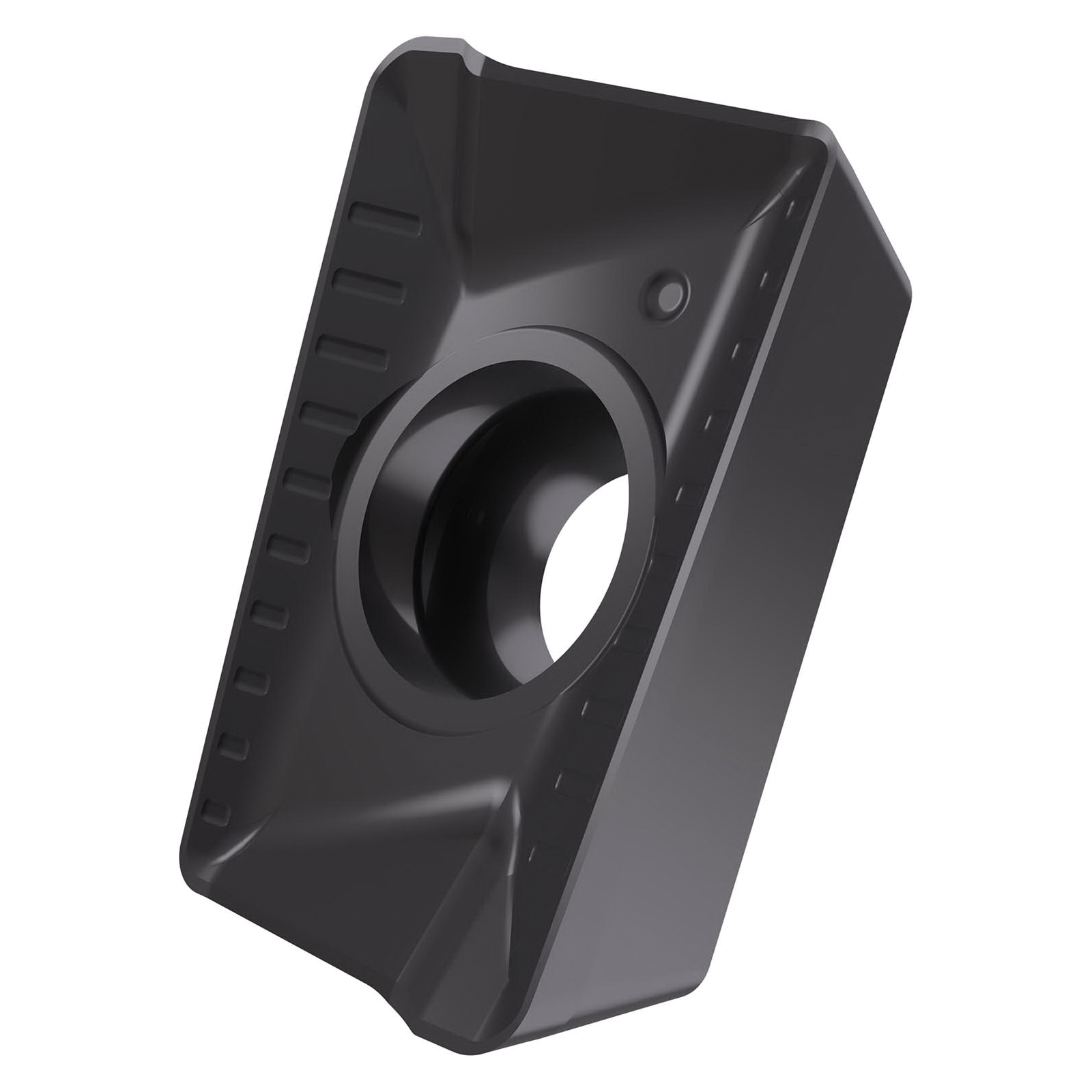

APKT 1003PDER-M:8215 MILLING INSERT
APKT 1003PDER-M:8215 MILLING INSERT
PRA6753394
6753394
14.29
/ EA
http://schema.org/OutOfStock
/Product/PRA6753394
- Insert Style: APKT
- Insert Size: 1003
- Corner Radius: 0.5mm
- Manufacturer Grade: 8215
- Chipbreaker: M
- ISO Code: APKT 1003PDER-M 8215
- ANSI Code: APKT -2PDER-M 8215
- Shape: 85° Parallelogram
- Surface Treatment: PVD Coated
- Inscribed Circle: 6.7mm
- Applicable Materials: Steel
- Hand of Insert: Right
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 2.88mm
- Lead Angle: 11°
- Material: Carbide
- Thickness: 3.5mm
- Type: 11mm, Positive
- Application
- Item Features
- Standards
General Machining Applications
- Type H submicron substrate with a relatively low cobalt content
- High abrasion resistance
- Very good resistance to spreading micro fissures
- Suitable for operations with a high thermal load, high cutting speeds, stable machining conditions
