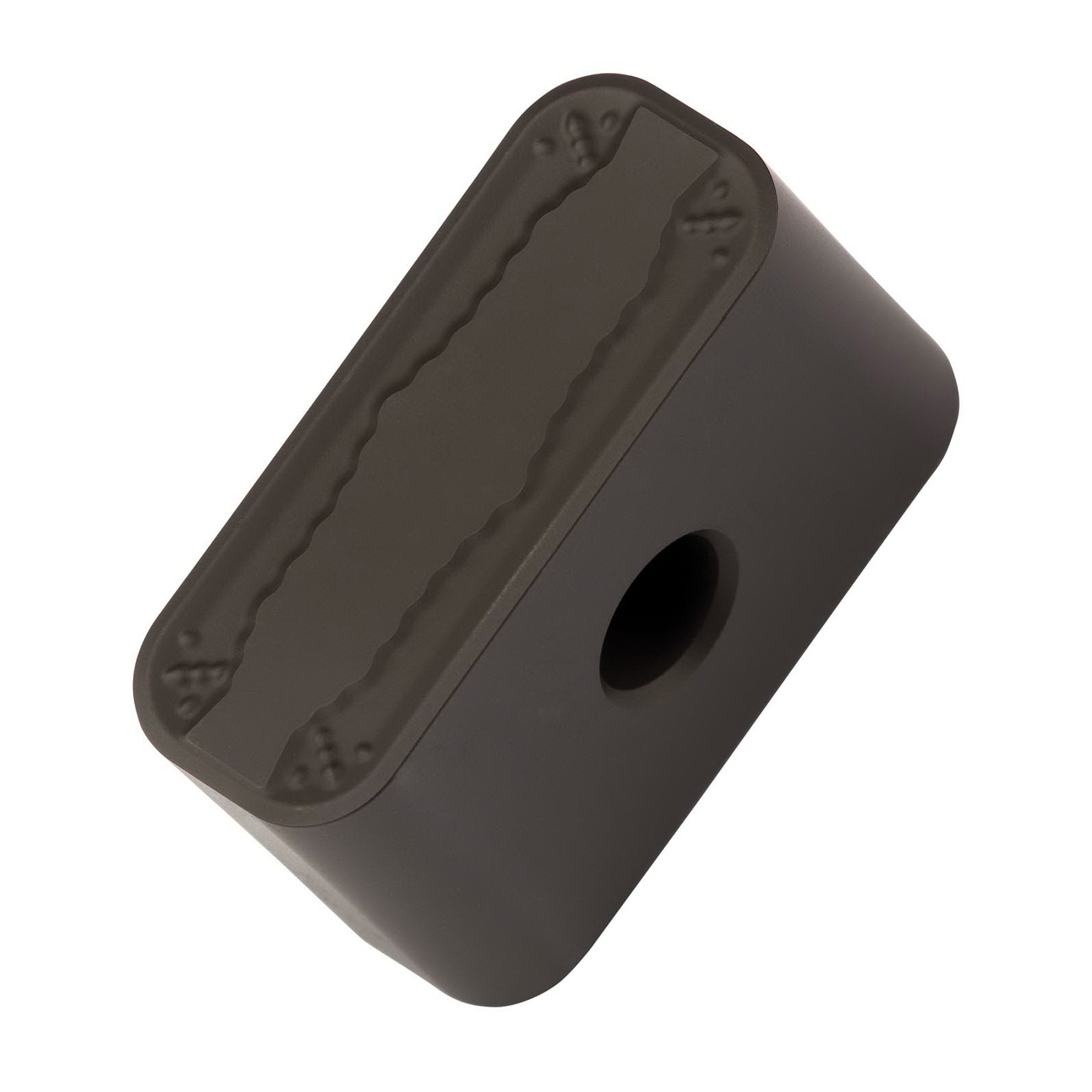

TURNING INSERT-HEAVY DUTY/RAILWAY LN.X 19, LN.X 30

TURNING INSERT-HEAVY DUTY/RAILWAY LN.X 19, LN.X 30

PRA6753316 6753316
51.40 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
  • Chipbreaker: RR
  • Corner Radius: 4mm
  • Hole Diameter: 6.35mm
  • Included Angle: 90°
  • Inscribed Circle: 19.05mm
  • Insert Size: 301940
  • Insert Style: LNMX
  • ISO Code: LNMX 301940SN-RR T9325
  • Material: Carbide
  • Material Grade: K, M, P, S
  • Maximum Depth of Cut: 12mm
  • Rake: Negative
  • Relief Angle:
  • Seat Size: 30
  • Shape: Rectangle
  • Surface Treatment: CVD Coated
  • Thickness: 12mm
  • Type: 30mm
  • Manufacturer Grade: T9325
  • Has Attributes: Yes
  • Has Image: Yes
  • Width: 19.05mm
Special design negative turning insert, rectangular with a main edge length of 30mm, 4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RR with rounded cutting edges with facet, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for heavy to medium machining of steels
Pack: 5/PK
QTY
  • Item Features
  • Standards
  • T9325 grade functionally gradient substrate
  • Relatively low content of cobalt binder phase
  • Thick MT-CVD coating
  • Highly versatile material with very good operational reliability
  • Special surface finish for coating
  • Medium and higher cutting speed
  • Continuous and interrupted cut
  • Unfavorable cutting conditions, continuous and/or interrupted cuts
  • Cutting geometry suitable for grooving and axial turning
  • For fine turning and finishing
