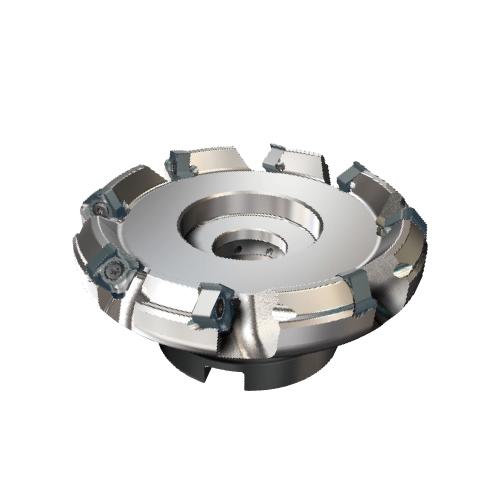

WSX445UR0308CA FACE MILL
WSX445UR0308CA FACE MILL
MIT828449
828449
1140.94
/ EA
http://schema.org/OutOfStock
/Product/MIT828449
- Cutter Diameter Inch: 3in
- Cutting Edge Angle: 45°
- Maximum Depth of Cut: 0.197"
- Series: WSX445_INCH
- Hand: Right
- Access Hole Diameter: 0.539"
- ANSI Designation: WSX445UR0308CA
- Axial Rake Angle: -6°
- Connection Bore Counterbore Depth: 0.671"
- Connection Bore Counterbore Diameter: 0.827"
- Connection Bore Depth: 0.945"
- Connection Diameter: 1"
- Functional Length: 2"
- Has Attributes: Yes
- Has Image: Yes
- Keyway Width: 0.375"
- Machine Side Contact Surface Diameter: 2.19"
- Maximum Diameter: 3.506"
- Radial Rake Angle: -10°
- System of Measurement: Imperial
